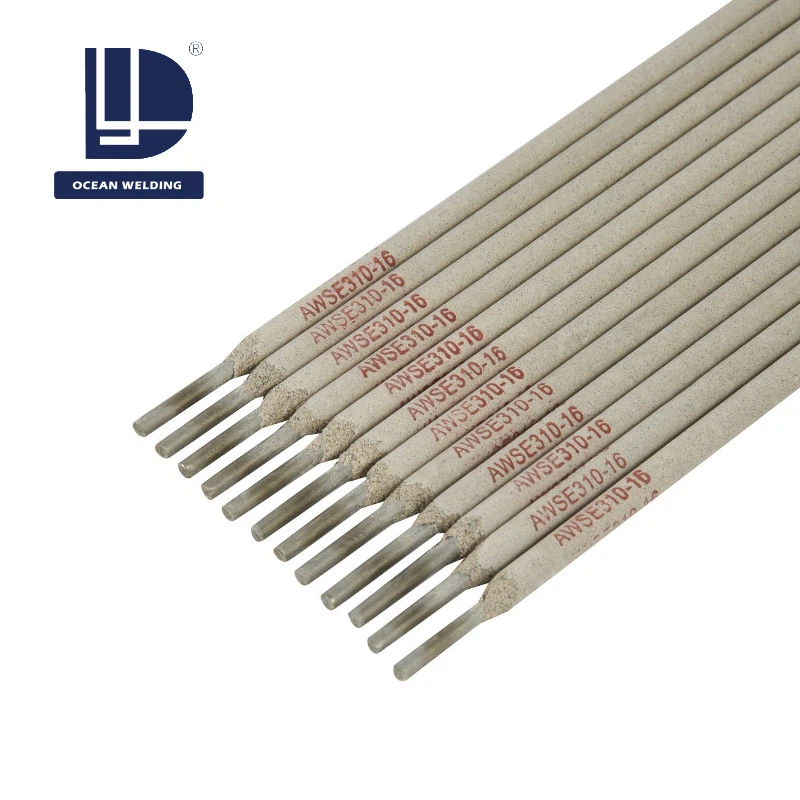

E310-16 Stainless Steel Welding Electrode
Manufacturer: Lin'an Dayang Welding Materials Co., Ltd. (Established in 1995, with 20 years of professional manufacturing experience)
Executive Standard: AWS A5.4 E310-16
Certifications: ISO, CE, SGS
I. Core Product Introduction
AWS E310-16 is a Cr26Ni21 pure austenitic stainless steel electrode with a rutile-calcium type coating. It supports both AC (alternating current) and DC (direct current) welding current modes, featuring advantages such as low spatter, good weld formation, and strong heat resistance. Suitable for all-position welding, it is a specialized material for welding heat-resistant stainless steel and high-hardenability steel structures.
II. Detailed Specification Parameters
| Category | Specific Parameters |
|---|---|
| Basic Properties | Material: Stainless Steel; Model: AWS E310-16; Product Type: Stainless Steel Welding Electrode |
| Dimension Specifications | Diameter: 2.0mm, 2.5mm, 3.0mm, 3.2mm; Length: 300mm-500mm |
| Welding Performance | Operating Current: 40-250A; Operating Temperature: Normal Temperature; Applicable Position: All-Position Welding |
| Appearance Color | Optional Colors: Blue, Red, Gray, White |

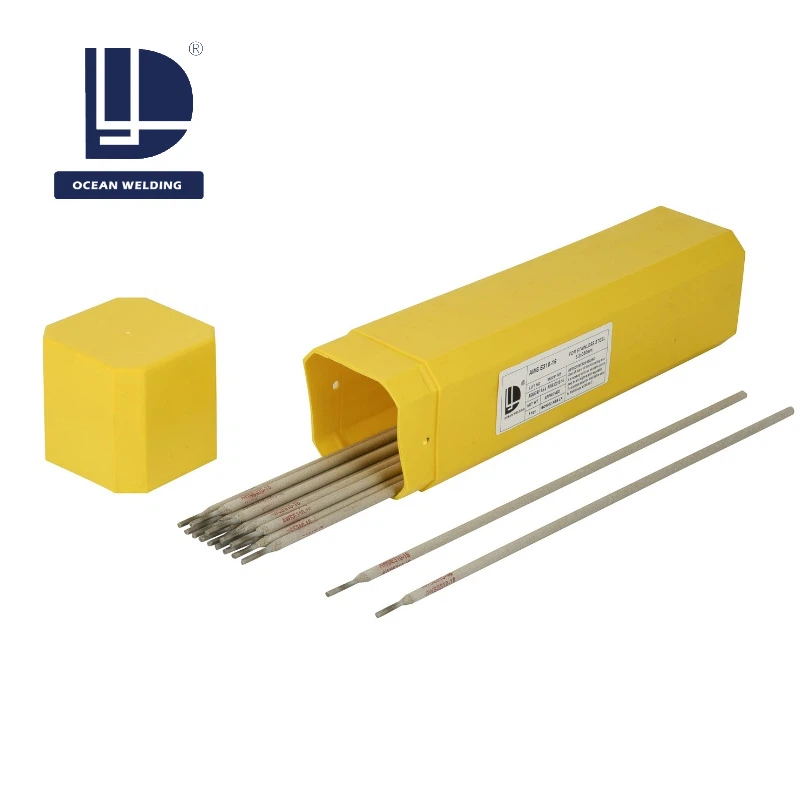

| Packaging Specification | 5kg/Plastic Box; 20kg/Carton (Including 4 Inner Boxes); 1 Ton/Pallet |
III. Application Scenarios
Welding of Heat-Resistant Stainless Steel in the Same System: Used for butt joint and repair of Cr26Ni21 series heat-resistant stainless steel, commonly applied in the manufacturing and maintenance of high-temperature equipment such as boilers and heat exchangers.
Welding of High-Hardenability Steel Structures: Capable of welding high-hardenability steels like Cr5Mo, Cr9Mo, Cr13, and Cr28, suitable for the processing of high-pressure pipelines, valves, and heat-resistant components.
Dissimilar Steel Welding: Realizes effective connection between stainless steel and other types of steel, meeting the assembly needs of components with different materials in complex equipment (e.g., dissimilar steel joints of chemical reaction kettles, mixed-material structures of mechanical equipment).
IV. Usage and Operation Guide
Electrode Pre-Treatment: Before welding, the electrode must be baked at a temperature of 300℃-350℃ for 1 hour to remove moisture in the coating, preventing defects such as porosity and slag inclusion after welding.
Welding Parameter Control: It is recommended to adopt low current and short arc welding methods to reduce the impact of heat input on the base metal performance. Meanwhile, the swing width of the weld bead should be controlled within "2.5 times the diameter of the electrode core" to ensure uniform fusion of the weld bead.
Precautions: Maintain stable operation during welding and avoid excessive swing. After welding, heat preservation or slow cooling treatment can be carried out as needed to improve the crack resistance and toughness of the weld.
V. Procurement and Service Support
1. Procurement-Related
Sample Policy: Free samples are provided for trial, allowing customers to test before purchasing.
Wholesale and Discounts: Bulk wholesale is supported, and exclusive discounts are available for large orders. For details, please consult customer service.
Price Advantage: Direct supply from the factory, no intermediate links, providing cost-effective products.
2. Customization Service
OEM Customization Supported: Customization of packaging, specifications, logos, etc., can be provided according to customer needs.
Exclusive Solutions: Provide product selection and technical support for special welding scenarios.
3. Logistics and Distribution
Shipping Port: Yiwu (Shanghai) Port
Delivery Cycle: Delivery will be completed within approximately 30 days after payment.
Transportation Methods: Multiple transportation methods such as sea freight and land freight are supported, which can be selected as required.
VI. Recommended Related Products of the Company
In addition to the E310-16 stainless steel welding electrode, the company also provides a full range of welding materials to meet the needs of different scenarios:
| Product Category | Representative Models |
|---|---|
| Carbon Steel Electrodes | AWS E6013, E6011, E7018, E7016, E6010 |
| Low-Alloy Steel Electrodes | AWS E7015-C2L, E9015-G, E8015-C1, E10015-D2 |
| Heat-Resistant Steel Electrodes | AWS E7015-A1, E8015-B1, E9015-B3, E502-15 |
| Low-Temperature Steel Electrodes | AWS E8015-C1, E8015-C2, E7015-C2L |
| Other Stainless Steel Electrodes | AWS E308-16, E316L-16, E309-16, E347-16, E312-16 |
VII. Contact Us
Company Name: Lin'an Dayang Welding Materials Co., Ltd.
Official Website: www.hzdayang.com
Business Consultation: Wholesale, procurement, and customization needs are supported. Welcome to contact us for quotations and technical materials.
