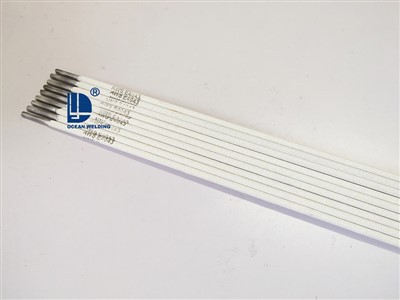

Aluminum Electrode

A1: A high-quality Aluminum Electrode is a welding electrode with a pure aluminum core (≥99.5% aluminum) and a high-performance flux coating. It is designed to weld pure aluminum and low-alloy aluminum, with key advantages like efficient oxide film removal, high conductivity, and good ductility. Unlike aluminum alloy electrodes (which contain silicon or magnesium), it prioritizes purity and conductivity, making it essential for pure aluminum parts.

A2: In composition, Aluminum Electrodes have a pure aluminum core (≥99.5% Al) with minimal impurities, while Aluminum Alloy Electrodes contain alloy elements (e.g., Si, Mg) to match aluminum alloys. In performance, Aluminum Electrodes excel in conductivity and ductility, while Aluminum Alloy Electrodes focus on strength and corrosion resistance. Applications: Aluminum Electrodes for electrical busbars; Aluminum Alloy Electrodes for marine aluminum-magnesium alloy parts.

A3: Match the electrode to the purity of the base material:
• 1100 aluminum (99% Al): Use E1100 (balances cost and performance) for general pure aluminum parts like radiators.
• 1060 aluminum (99.6% Al): Choose E1060 (higher purity) for food-grade or high-purity applications like dairy equipment.
• 1350 aluminum (99.5% Al, high conductivity): Use E1350 for electrical conductors, as it retains ≥61% IACS conductivity.

A4: Pure aluminum forms a dense oxide film (Al₂O₃) within seconds of exposure to air—this film has a melting point (2050°C) much higher than aluminum (660°C), preventing fusion. The flux coating in Aluminum Electrodes contains fluorides (e.g., KF, NaF) that react with Al₂O₃, breaking down the film and allowing the molten aluminum core to bond with the base material. Without effective flux, welds will have incomplete fusion or porosity.

A5: Key preparations include:
• Surface cleaning: Remove oil with acetone, then use a stainless steel wire brush to scrub the surface (removes loose oxide). For high-purity applications, etch with 5% nitric acid (30 seconds) to remove stubborn oxide, then rinse with water.
• Drying electrodes: Bake at 120–150°C for 1 hour to remove moisture (moisture causes porosity in pure aluminum welds).
• Preheating (for thick parts): For pure aluminum >5mm thick, preheat to 100–120°C to reduce heat loss (pure aluminum conducts heat quickly, cooling the weld pool).

A6: Parameters depend on electrode diameter and material thickness:
• 2.5mm electrode (for 1–3mm pure aluminum): 60–80A, 18–22V (AC or DC reverse polarity).
• 3.2mm electrode (for 3–6mm pure aluminum): 80–110A, 20–24V.
• 4.0mm electrode (for 6–10mm pure aluminum): 110–140A, 22–26V.
Use AC current for better oxide removal; keep the arc short (1–2mm) to avoid spatter and ensure flux effectiveness.

A7: Common defects include:
• Porosity: Caused by moisture (electrode or base material) or oil residues. Prevent by baking electrodes, cleaning with acetone, and ensuring the workspace is dry.
• Incomplete fusion: Due to fast welding speed or insufficient current. Prevent by slowing the welding speed (8–12 cm/min for 3.2mm electrodes) and using adequate current.
• Burn-through: In thin pure aluminum (<2mm) from excessive current. Prevent by using 2.5mm electrodes and low current (60–70A).

A8: Store in a sealed, moisture-proof container at 10–30°C with relative humidity ≤50%—moisture degrades flux, reducing oxide removal ability. After opening, use within 6 hours (pure aluminum flux is highly hygroscopic). Unused electrodes must be re-baked at 150°C for 1 hour if exposed to air for >4 hours. Unopened electrodes have a 1-year shelf life.

A9: It is not recommended. Pure aluminum and aluminum alloys (e.g., 6061) have different melting points and alloy compositions—welding them with an Aluminum Electrode will cause the weld to be diluted with alloy elements, reducing conductivity and ductility. If necessary, use an aluminum-silicon alloy electrode (e.g., E4043) to balance the joint, but avoid this for high-conductivity applications.

A10: For electrical parts: Grind the weld to a smooth surface (reduces electrical resistance) and test conductivity.
For food-grade parts: Remove flux residues with hot water and a brush (flux is toxic if left), then sanitize.
For structural parts: No heat treatment is needed (pure aluminum welds do not require aging); simply remove slag and grind sharp edges.

A11: Use a conductivity meter to measure the weld’s IACS percentage—qualified welds should reach ≥60% (for E1350) or ≥55% (for E1100). For electrical busbars, perform a resistance test: the weld resistance should not exceed 1.2 times the base material’s resistance.

A12: E1100 is the most common, with 99% aluminum—balances cost and performance for general pure aluminum parts. E1060 has 99.6% aluminum, with lower impurities (e.g., iron ≤0.2%)—used in food-grade or high-purity equipment. E1350 is optimized for conductivity (≥61% IACS) with controlled impurities that reduce conductivity—critical for electrical conductors.

A13: Thin pure aluminum (<3mm) warps easily due to uneven heating. Prevention:
• Use 2.5mm electrodes and low current (60–80A) to minimize heat input.
• Weld in a staggered pattern (e.g., weld 1cm, skip 2cm, repeat) to spread heat.
• Clamp the part to a heat sink (e.g., a thick aluminum plate) to absorb excess heat.
• Allow slow cooling (avoid fans) to reduce thermal stress.

A14: Yes, but with adjustments. For vertical welding, use upward progression with a 2.5mm electrode and low current (60–80A) to prevent molten metal from sagging. For overhead welding, keep the arc very short (≤1mm) and use a small weaving motion to control the weld pool. These positions require more skill—flat or horizontal welding is preferred for better results.

A15: Flux contains fluorides, which release toxic fumes when heated—ensure good ventilation and wear a respirator with fluoride filters. Pure aluminum welding produces bright arcs—use a welding helmet with shade 10. Avoid skin contact with flux (causes irritation); wear chemical-resistant gloves. After welding, wash hands thoroughly to remove flux residues.

A16: Slightly damp electrodes (exposed to 50–60% humidity for <2 hours) can be re-baked at 150°C for 1 hour. Severely damp electrodes (flux caking or visible moisture) must be discarded—moisture causes porosity, and re-baking cannot restore the flux’s oxide-removing ability. Never use damp electrodes for food-grade or electrical parts.

A17: Choose E1060 (high purity) with low heavy metal content (lead ≤0.01%, cadmium ≤0.001%). Ensure the flux is food-safe (no toxic additives) and remove all flux residues post-weld (use hot water + food-grade detergent). The electrode should meet standards like FDA 21 CFR 177.1390 (for aluminum in food contact).

A18: Too fast a speed leaves insufficient time for flux to dissolve the oxide film, causing incomplete fusion. Too slow a speed leads to overheating, melting the base material (especially thin aluminum) and increasing warping. For a 3.2mm electrode, a speed of 10–12 cm/min is optimal—balances oxide removal and heat control.

A19: Clean the hole and surrounding area with acetone and a wire brush. Preheat the area to 100°C. Use a 2.5mm electrode to “build up” weld metal around the hole: start with small beads around the edge, then fill the center. Keep current low (70–80A) to avoid enlarging the hole. After welding, grind the surface smooth.

A20: Yes, but AC is preferred. DC reverse polarity (electrode positive) can be used, but it requires stricter pre-cleaning (since AC’s “cleaning action” helps remove oxide film). DC may produce more spatter than AC, so keep the arc short and current at the lower end of the recommended range.

A21: Key criteria include:
• Visual: No porosity, cracks, or incomplete fusion; the weld bead is smooth and uniform.
• Conductivity: ≥55% IACS (for general use) or ≥60% IACS (for electrical parts).
• Ductility: Pass a 180° bend test (no cracks in the weld or heat-affected zone).
• Corrosion: No white corrosion after a 24-hour salt spray test (for outdoor parts).

A22: With preheating and multi-layer welding, they can weld up to 15mm thick pure aluminum. For thick plates:
• Use 4.0mm electrodes for root passes (current 110–140A).
• Fill with 3.2mm electrodes, keeping interpass temperature ≤120°C.
• Preheat to 120°C to ensure fusion and reduce cooling rate.

A23: Flux inclusions (trapped flux in the weld) are caused by fast welding or excessive current. Prevention:
• Weld at a moderate speed to allow flux to float to the surface.
• Use a slight weaving motion to help flux separate from the molten pool.
• Clean flux residues between layers with a wire brush (critical for multi-layer welding).

A24: Store in a dry, well-ventilated area to avoid moisture-induced corrosion. For food-grade parts, wrap in clean, food-safe plastic after cleaning. For electrical parts, avoid contact with copper or steel (prevents galvanic corrosion) and insulate with non-conductive materials if needed.

A25: Yes, but pure aluminum castings have higher porosity than wrought aluminum. Preheat the casting to 120–150°C to reduce gas release during welding. Use low current (80–100A for 3.2mm electrodes) and weld in short segments to avoid enlarging pores. Post-weld, grind the surface to remove any porous areas.

A26: High ambient temperatures (>30°C) accelerate flux moisture absorption—use electrodes immediately after baking and store opened ones in a moisture-proof cabinet. Low temperatures (<5°C) increase heat loss—preheat the base material to 120°C and use AC current to ensure arc stability.

A27: Unopened electrodes have a 1-year shelf life in dry storage. Opened electrodes must be used within 6 hours (flux absorbs moisture quickly). Re-baking can extend use by 2–3 hours but reduces flux effectiveness—do not re-bake more than once.

A28: Choose E1100 or E1060 for their good thermal conductivity (≥200 W/(m·K)). Ensure the welds are smooth (no pores) to avoid reducing heat transfer efficiency. Post-weld, clean flux residues thoroughly—flux is a poor thermal conductor and will hinder heat exchange.

A29: Perform a bend test: clamp a weld specimen in a vice and bend it 180° (until the two ends touch). A qualified weld will show no cracks in the weld or heat-affected zone. For thin aluminum (<3mm), the bend test ensures the weld can withstand forming operations (e.g., rolling, folding).

A30: Solid Aluminum Electrodes have a solid pure aluminum core and external flux coating—better for thin pure aluminum (≤6mm) and precision welding (e.g., food-grade parts). They produce cleaner welds but have lower deposition rates.
Flux-cored Aluminum Electrodes have a hollow core filled with flux—higher deposition efficiency for thick pure aluminum (>6mm) but may leave more slag, requiring thorough cleaning.

A31: Arc instability is caused by damp electrodes, dirty base material, or improper current. Prevention:
• Use freshly baked electrodes and store them in a sealed container until use.
• Clean the base material to remove oxide and oil (bright metal surface is ideal).
• Match current to electrode diameter (e.g., 90A for 3.2mm E1100) and use AC with high-frequency start.

A32: Spatter is caused by excessive current or a long arc. Prevention:
• Reduce current by 10% if spatter is excessive.
• Keep the arc short (1–2mm) to minimize metal droplet ejection.
• Apply anti-spatter spray to the base material before welding (easily removed post-weld with water).

A33: Direct welding is not recommended—aluminum and copper form brittle intermetallic compounds (e.g., CuAl₂) that cause cracks. Use a transition piece: weld pure aluminum to an aluminum-copper alloy (e.g., 2024) with an aluminum alloy electrode, then weld copper to the copper side with a copper electrode. This is only suitable for low-stress applications.

A34: Flux activity (ability to dissolve oxide) decreases with moisture and storage time. Test by welding a 3mm pure aluminum sheet:
• Active flux: Weld bead is smooth, with no black oxide edges, and slag removes easily.
• Inactive flux: Weld has rough edges, incomplete fusion, or slag that sticks tightly.
Discard electrodes with inactive flux—they cannot produce reliable welds.

A35: Flux residues are corrosive and must be removed:
• For small parts: Soak in hot water (60–80°C) for 15 minutes, then scrub with a nylon brush.
• For large parts: Use a pressure washer with hot water (avoid high pressure on thin aluminum to prevent warping).
• For food-grade parts: Use hot water + food-grade detergent, then rinse thoroughly and sanitize.
