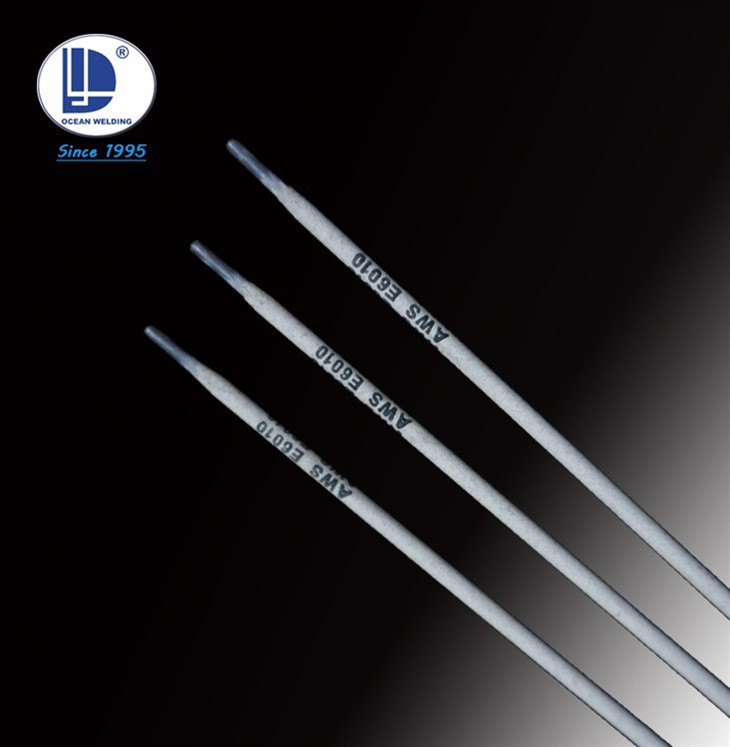

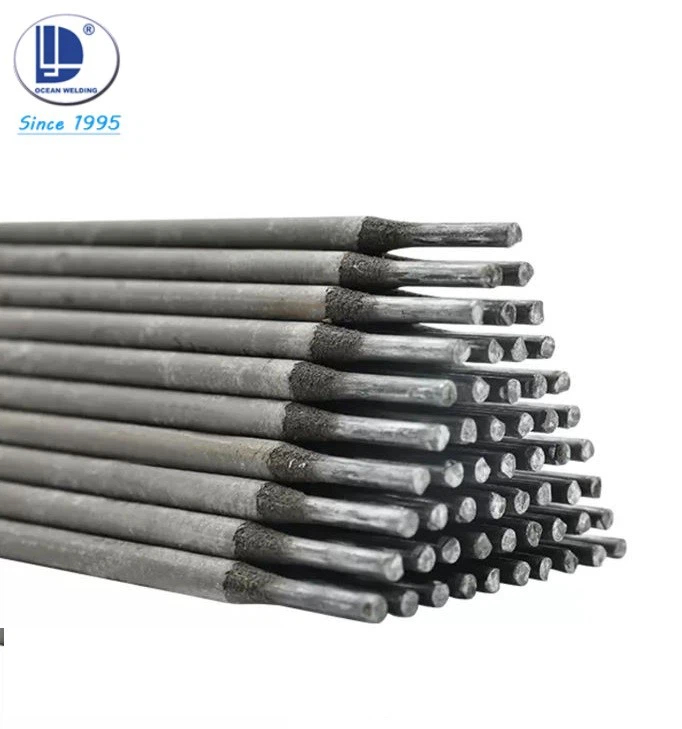

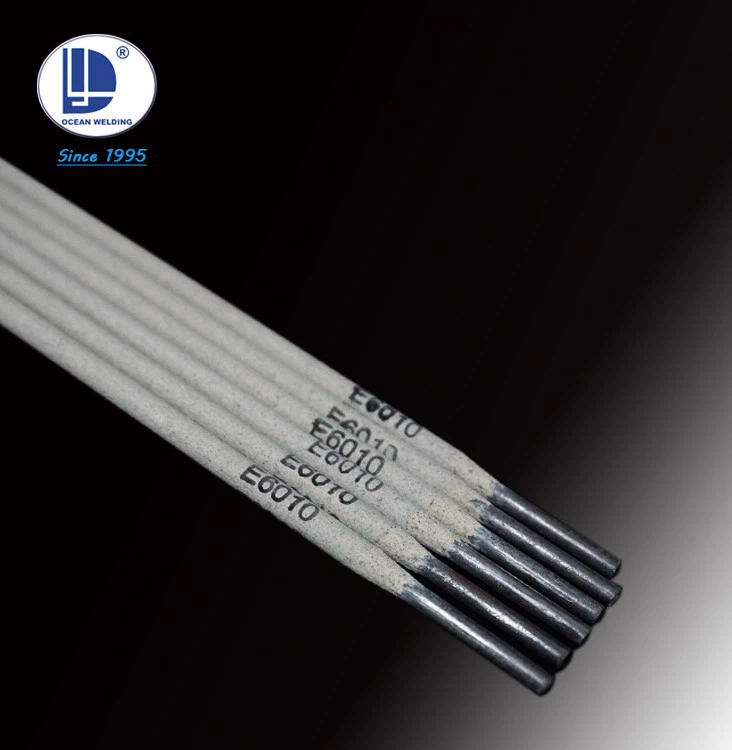

Carbon Welding Rod Aws E6010
Carbon welding rod E6010
Description
AWS E6010 is a high cellulose sodium type carbon steel welding electrode for vertical-down welding.It shows a very good performance in welding of all positions, especially vertical-down welding.The welding performance are excellent:deep penetration,fewer slag,slag easy to remove,high welding efficiency and good weld shape etc.The electrode forms double sides by one side welding.
Application
E6010 welding rod is commonly used to weld root passes in pipeline and structural welding applications.It is suitable for welding in both vertical and overhead positions.It performs well in fillet welds and butt joints.The electrode is also used for general-purpose welding of mild steel.
Attention
a.Generally,welding electrodes do not need bake before welding.
b.If damped,the electrodes should be baked for 0.5-1 hours at the temperature of 70-80℃ before welding.
Product detail
Chemical Composition of Deposited Metal(%)
| Item | C | Mn | Si | P | S |
| Result | 0.091 | 0.55 | 0.18 | 0.015 | 0.013 |
Mechanical Properties of Deposited Metal
|
Tensile Strength σb(Mpa) |
Yield Point σ0.2(Mpa) |
Elongation δ5 (%) |
Akv Impact（-30℃） (J) |
|
| Standard | ≥420 | ≥330 | ≥22 | ≥27 |
| Result | 500 | 405 | 28 | 96 |

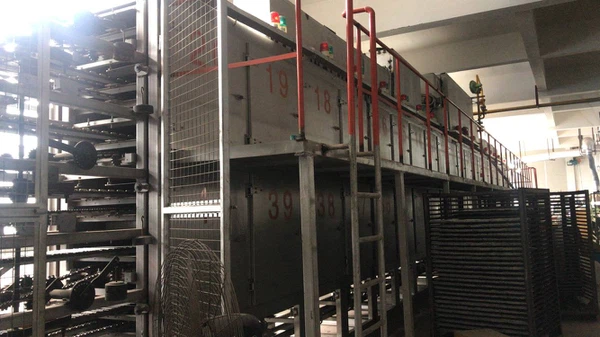

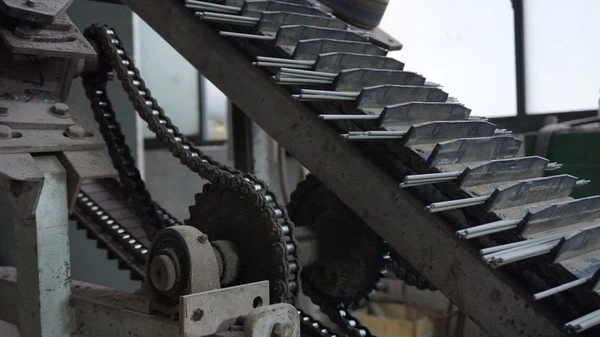

Our Workshop
Customer Feedback
