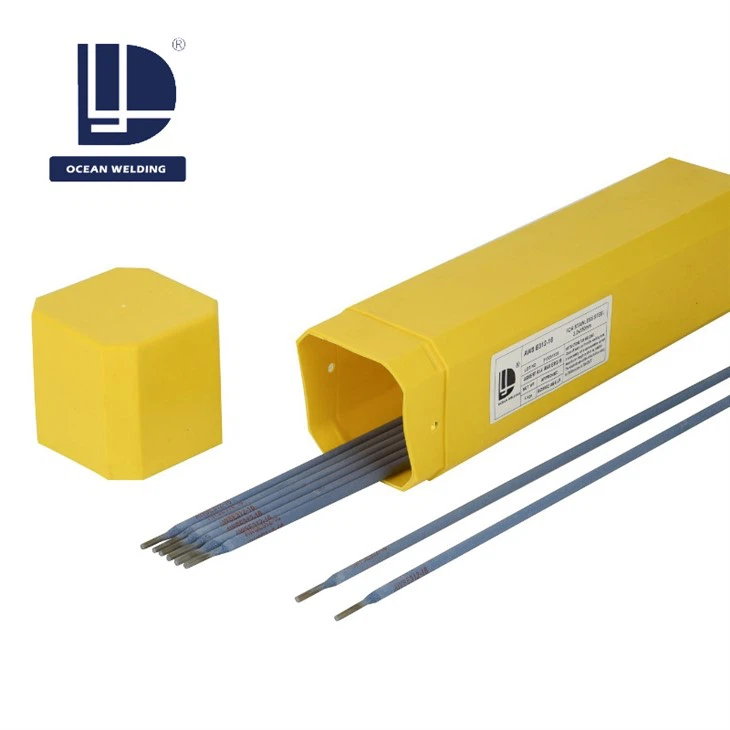

Stainless Steel Welding Electrodes E312-16
Brand: Ocean Welding
Origin: Zhejiang, China
Diameter: 1.6/2.0/2.5/3.2/4.0/5.0mm
Length: 300mm-500mm
Welding current: 40-250A
Stainless Steel Welding Electrodes E312-16 Details
|
Place of Origin: Zhejiang China(mainland) |
Brand Name: Ocean Welding |
Model Number: AWS E312L-16 |
|
Material: Stainless Steel |
Length: 300mm-500mm |
Operating Current: International Standard |
|
Welding Current: 40-250 |
Operating Temperature: Normal |
Diameter: 1.6/2.0/2.5/3.2/4.0/5.0mm |
|
Application: For high carbon steel |
Product Name: AWS E312L-16 |
Usages: Stainless Steel-steels |
|
Color: Blue Red Green Grey |
Size: 1.6/2.0/2.5/3.2/4.0/5.0mm |
Adv: Strong stress corrosion resistance |
|
Delivery Time: 20 days after confirmation |
OEM: Accept OEM |
PAYMENT: TT |
In the field of industrial welding, facing the challenge of welding high-carbon steel and stainless steel dissimilar materials, traditional welding rods often have difficulty in balancing strength and corrosion resistance. AWS E312L-16 stainless steel welding rod is a Cr29Ni9 duplex stainless steel welding rod that uses advanced titanium calcium coating technology and can be used in both AC and DC, perfectly solving this industry pain point. Its unique low-carbon formula and the addition of molybdenum and nitrogen elements enable the deposited metal to maintain excellent crack resistance and corrosion resistance in extreme environments, making it an ideal choice for key fields such as chemical, petroleum, and marine engineering.
Product features and advantages
- Excellent corrosion resistance: especially suitable for high stress corrosion environment
- Excellent welding performance: AC and DC dual-use, stable arc, beautiful forming
- High mechanical properties: high strength and good toughness of deposited metal
- Wide applicability: suitable for welding of dissimilar steels such as stainless steel and carbon steel
Chemical composition requirements (welding metal:%)
| Item | Standard Range | Typical Value |
|---|---|---|
| C | ≤0.15 | 0.12 |
| Cr | 28.0-32.0 | 29.3 |
| Ni | 8.0-10.5 | 9.4 |
| Mn | 0.5-2.5 | 1.8 |
| Si | ≤0.90 | 0.56 |
| Mo | ≤0.75 | 0.15 |
| P | ≤0.04 | 0.021 |
| S | ≤0.03 | 0.022 |
Mechanical performance requirements
| Performance Index | Standard Minimum | Typical Value |
|---|---|---|
| Tensile strength | ≥660 MPa (95,700 psi) | 760 MPa (110,200 psi) |
| Yield strength | ≥490 MPa (71,000 psi) | 750 MPa (108,800 psi) |
| Elongation | ≥22% | 23-26% |
Welding process requirements
1. Power type: AC (alternating current) or DC+ (reverse direct current)
2. Rod drying: 300-350℃ drying for 30-60 minutes, placed in 80-100℃ insulation cylinder before use
3. Current range (flat welding position):
• 2.5mm: 50-80A
• 3.2mm: 80-110A
• 4.0mm: 100-150A
• 5.0mm: 140-180A
4. Welding position: All-position welding (vertical downward is not recommended)
Supply Ability Stainless Steel Welding Electrodes E312-16
Supply Ability: 50 Ton/Tons per Day
Packaging & Delivery Stainless Steel Welding Electrodes E312-16
Packaging Details: 5kg/ plastic bag+ inner box; 4 inner boxes(20kg)/carton; 1 ton/pallet
Port: Shanghai Ningbo Yiwu
Lead Time: Within 30 days after receiving the down payment
More information of Stainless Steel Welding Electrodes E312-16
Stainless Steel Welding Electrodes E312-16 is a Cr29Ni9 duplex stainless steel electrode of titanium calcium type coating. AC and DC, good welding process performance, due to the extremely low carbon content, and contains molybdenum, nitrogen, deposited metal has good crack resistance and corrosion resistance, especially stress corrosion resistance is outstanding.
Why choose US?
Hangzhou Lin'an Dayang Welding Material Co.,Ltd is a exporting company with a long history, also a professional production factory, mainly product all kinds of welding consumables, including welding electrode, welding wires,welding machine etc. We always put quality as the first consideration and have very good favour from our clients from all around the world. Thank you for your reading.
Hot Tags: Stainless Steel Welding Electrodes E312-16, China, manufacturers, suppliers, factory, company, wholesale, discount, buy, low price, high quality, products
