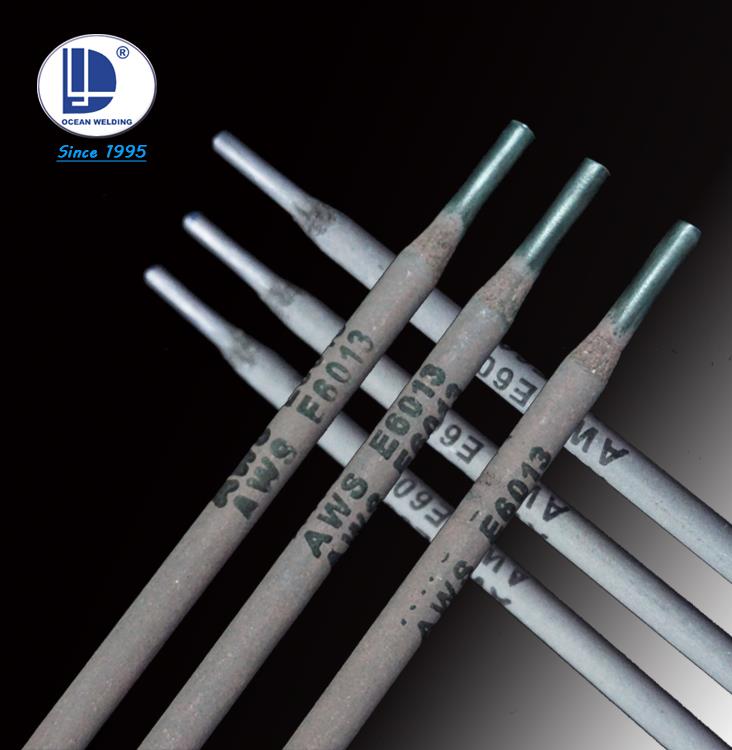

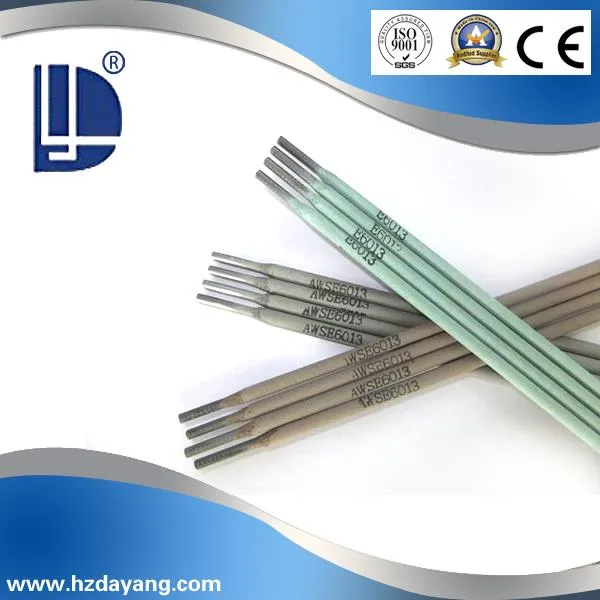

6013 Welding Rod



Welding Electrodes E6013

Place of Origin: Zhejiang, China(Mainland)	Brand Name: Ocean Welding rod
Model Number: AWS E6013	Material: carbon steel electrode
Length: 300mm-500mm	Operating Current: International Standard
Welding Current: International Standard	Operating Temperature: International Standard
Diameter: 1.6mm,2.0mm,2.5mm,3.2mm,4.0mm,5.0mm	Color: grey-white/blue/green/rutile
Standard: AWS A.5.1 E6013	Certification: ISO CE
Application: welding of steel sheet structures,shipbuilding structures,and low alloy steel

AWS E6013 is a titanium calcium coated carbon steel electrode, which adopts advanced coating formula design, can be used in both AC and DC, and has excellent welding process performance. This electrode has the characteristics of stable arc, small spatter, easy slag removal, and beautiful weld formation. It is suitable for all-position welding, especially for steel plate structure, shipbuilding and low alloy steel welding applications. Its low carbon content and optimized alloy composition ensure good toughness and crack resistance of the weld metal, making it an ideal choice for general welding projects.

Welding Electrodes  e6013

Chemical Composition of Deposited Metal (%)

Items	C	Mn	Si	S
≤0.12	0.3- 0.6	≤0.35	≤0.035	≤0.04

Mechanical Properties of Deposited Metal (%)

	Yield Point ReH(Mpa)	Tensile Strength Rm(Mpa)	Elongation A5(%)	Impact Value (J) 0°c
Standard	≥306	400-560	≥22	≥47

Reference current:(AC/DC)

Welding Electrodes 6013

WELDING CURRENTS
Size(mm)	Current Range(A)
Φ	Length	Flat	Vertical&Overhead
2.5	300/350	60-90	60-80
3.2	350	90-130	80-100
4.0	350/400	150-200	140-170
5.0	400	160-230	150-210

1. Excellent welding process performance
• Stable arc: Titanium calcium coating ensures easy arc starting, stable arc burning, and excellent re-ignition performance
• Minimal spatter: Less spatter during welding, reducing the workload of post-weld cleaning and improving production efficiency
• Beautiful forming: The weld ripples are fine and uniform, the excess height is moderate, the surface is smooth, and no excessive modification is required
• Easy slag removal: The slag shell stripping performance is excellent, especially in vertical welding and overhead welding positions
2. All-position welding capability
• Perfectly suitable for various welding positions such as horizontal, vertical, horizontal, and overhead
• Good molten pool control, even when welding vertically downward, it can maintain stable weld formation
• Insensitive to welding current fluctuations, adaptable to a variety of welding equipment and power grid conditions
3. High-quality weld performance
• Low-carbon component design reduces the risk of welding cracks
• The weld metal has good plasticity and toughness, and the impact value is ≥47J (0℃)
• Strong anti-porosity ability, with a certain tolerance to rust, oil, etc.



• Shipbuilding

Applicable to the welding of carbon steel structures such as ship hulls and decks, especially suitable for all-position welding operations.

• Construction machinery

Widely used in the welding of structural parts of construction machinery such as excavators and cranes, with beautiful welds and strength that meets requirements.

• Building steel structures

Used for welding building steel structures such as factories and bridges, it can improve welding efficiency and ensure welding quality.

• Vehicle manufacturing

Applicable to the welding of automobile chassis, carriages and other parts, with small spatter and good deformation control.



1. Drying of welding rod: Generally, no drying is required. If the welding rod is damp, it should be dried at 70-80℃ for 30-60 minutes
2. Workpiece cleaning: Remove rust, oil, moisture and other impurities in the welding area to ensure welding quality
3. Joint design: Select the appropriate groove form according to the plate thickness. The recommended blunt edge is 1-2mm and the gap is 2-3mm



1. Use short arc welding and keep the arc length at 1-3mm
2. The speed of the welding rod is uniform and the swing amplitude should not be too large, generally not exceeding 3 times the diameter of the welding rod
3. When welding multiple layers, the temperature between layers should be controlled below 150℃, and the welding slag must be thoroughly removed between layers
4. The welding power supply can be connected with AC or DC positive connection. It is recommended to use DC reverse connection to obtain better penetration



• Porosity problem: Check the cleaning of the workpiece, ensure that the welding rod is not damp, and reduce the welding speed appropriately
• Slag inclusion problem: Increase the speed of the welding rod, increase the arc voltage, and ensure that the molten pool is fully stirred
• Incomplete fusion problem: Increase welding current, reduce welding speed, and ensure full penetration of the groove root

Packaging & Shipping

Welding Electrodes e6013

Package details:

1.  2.5kg/inner box or 5kg/inner box(shrink film+paper box)
     4 inner boxes(20kgs)/carton
     50 carton(1 ton)/pallet

2. As clients' requirement

     Delivery:

     Delivery time: Normally ready goods within 8 to 25 days.

     Delivery term: CIF CNF/CFR FOB EXW

1. International standard quality assurance
Authoritative certification: strictly comply with AWS A5.1 standard, passed ISO 9001 quality management system certification and CE certification
Precision production: using automated production lines, the electrode diameter tolerance is controlled at ±0.05mm, and the coating uniformity is ±2%
Full inspection system: each batch of products is tested for chemical composition and mechanical properties to ensure 100% qualified delivery

2. 25 years of professional manufacturing experience
Technical accumulation: focusing on welding material production for 25 years, accumulating rich experience in formula optimization and production process
Capacity guarantee: annual production capacity of 5,000 tons, which can meet the needs of large-scale orders, and conventional specifications are available in stock
R&D strength: with a professional R&D team, the coating formula can be customized according to the special needs of customers

3. Wide customer recognition
Key engineering applications:
Ship hull welding of Jiangnan Shipbuilding Group
Steel structure construction of Shanghai Baosteel plant
Auxiliary structure welding of Hangzhou Bay Cross-sea Bridge
Customer feedback: A large domestic steel structure enterprise reported after use that "welding efficiency increased by 20%, and post-weld cleaning costs reduced by 30%"

4. Perfect after-sales service
Technical support: Provide 24-hour welding process consulting service
Quick response: Regular orders are shipped within 24 hours, and special specifications are produced within 7 days
Quality commitment: Unconditional return and exchange for product quality problems, and provide complete quality traceability service



About us：Hangzhou Lin'an Dayang Welding Material Co.,Ltd, are both factory and exporting company, producting and exporting welding materials for about 25 years. It adhere to the concept of professional focus,science and technology innovation, adopting the advanced technology and equipment,and implementing the international quality standard.
