Stainless Welding Rod

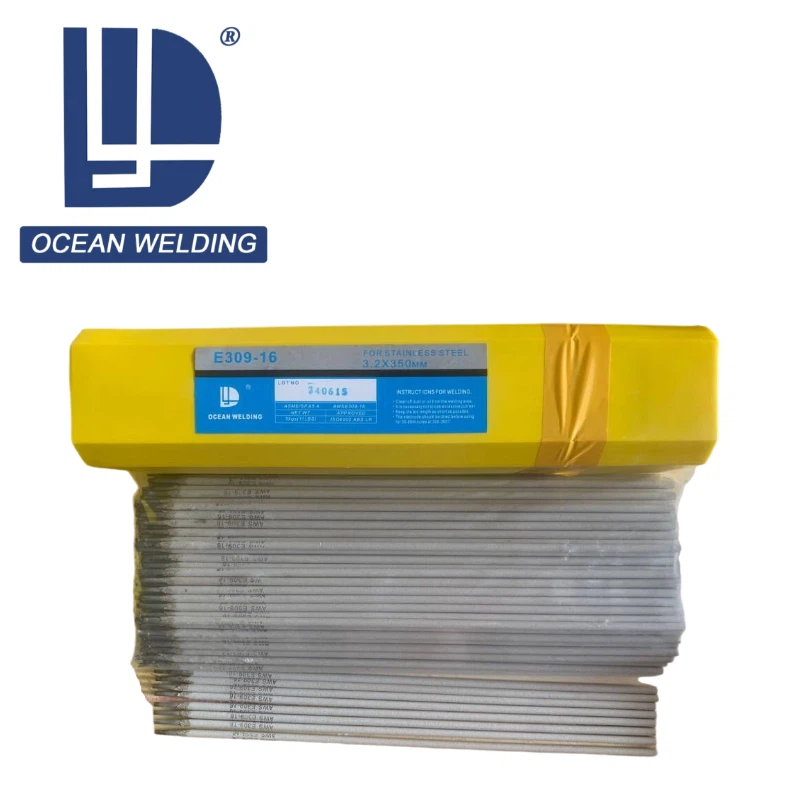

Product name: E309-16 stainless welding rod
Origin: Hangzhou, Zhejiang, China
Product Introduction
E309-16 stainless welding rod is a Cr23Ni13 stainless steel welding rod with titanium calcium coating, which conforms to GB/T 983 E309-16, AWS A5.4 E309-16, ISO 3581-B-ES 309-16 standards. This welding rod has good crack resistance and oxidation resistance, can be used in both AC and DC, and has excellent operating process performance.
Good crack resistance and oxidation resistance: The deposited metal has excellent crack resistance and oxidation resistance. E309-16 stainless welding rod can maintain good performance in harsh environments.
AC and DC dual-purpose: Applicable to AC and DC power supplies, more flexible and convenient operation.
All-position welding: Applicable to all-position welding, including flat welding, vertical welding, overhead welding, etc.
Small spatter, beautiful weld shape: E309-16 stainless welding rod has small spatter during welding, beautiful weld shape, and smooth surface.
Technical Parameters
| Item | Parameters |
|---|---|
| Welding rod diameter (mm) | 2.0,2.5,3.2,4.0 |
| Welding rod length (mm) | 300,350,400 |
| Welding current (A) | Flat welding: 20 - 160; vertical and overhead welding: 20 - 135 |
| Chemical composition of deposited metal (%) | C≤0.15,Si 0.5 - 2.5,Mn≤1.0,P≤0.04,S≤0.03,Cr 22.0 - 25.0,Mo≤0.75,Cu≤0.75,Ni 12.0 - 14.0 |
| Mechanical properties of deposited metal | Tensile strength ≥550MPa, elongation after break ≥25% |
Application Areas
E309-16 stainless welding rod is widely used in welding the same type of stainless steel, stainless steel lining, dissimilar steel (such as Cr19Ni10 and low carbon steel) and high chromium steel, high manganese steel and other structures. It is suitable for welding important structures in industries such as petrochemical, shipbuilding, automobile manufacturing, bridge construction, etc.
Welding process parameters
|
Welding rod diameter (mm) |
Welding current (A) |
|---|---|
| 2.0 | Flat welding: 20 - 50; vertical and overhead welding: 20 - 50 |
| 2.5 | Flat welding: 50 - 90; vertical and overhead welding: 50 - 75 |
| 3.2 | Flat welding: 90 - 120; vertical and overhead welding: 75 - 100 |
| 4.0 | Flat welding: 120 - 160; vertical and overhead welding: 85 - 135 |
Notes
Before welding, theE309-16 stainless welding rod must be baked at 200~300℃ for 1 hour and used immediately after baking.
Before welding, the weldment must be cleaned of rust, oil, moisture and other impurities.
When welding multiple layers, the surface of the welding slag must be cleaned and the temperature between passes must be controlled below 150℃.
When welding, short arc operation must be used, and narrow weld passes are preferred.
Packaging and storage
Packaging: Inner box and outer box packaging, each box weighs 20kg.
Storage: E309-16 stainless steel welding rods should be stored in a dry, well-ventilated environment to avoid moisture.
Product Advantages
- High-quality welding: E309-16 welding rod are made of high-quality raw materials to ensure stable and reliable welding quality.
- Wide applicability: Suitable for welding of various stainless steels and dissimilar steels to meet the needs of different industries.
- Easy operation: AC and DC dual-use, all-position welding, more flexible and convenient operation.
FAQ
Q: What materials can E309-16 stainless electrode be used for welding?
A: E309-16 electrode can be used to weld the same type of stainless steel, stainless steel lining, dissimilar steel (such as Cr19Ni10 and low carbon steel) and high chromium steel, high manganese steel and other structures.
Q: What is the welding current range of E309-16 welding rod?
A: 2.0mm: flat welding 20-50A, vertical and overhead welding 20-50A 2.5mm: flat welding 50-90A, vertical and overhead welding 50-75A 3.2mm: flat welding 90-120A, vertical and overhead welding 75-100A 4.0mm: flat welding 120-160A, vertical and overhead welding 85-135A.
Q: What are the chemical compositions of the deposited metal of E309-16 stainless welding rod?
A: C≤0.15 Si 0.5 - 2.5 Mn≤1.0 P≤0.04 S≤0.03 Cr 22.0 - 25.0 Mo≤0.75 Cu≤0.75 Ni 12.0 - 14.0.
