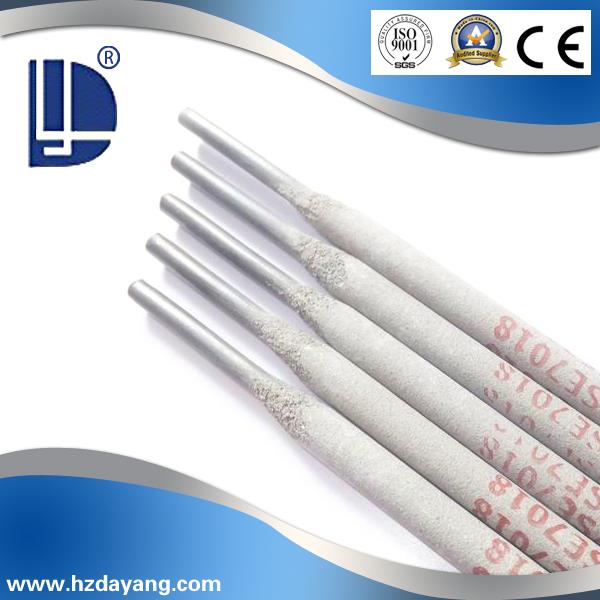

E7018 Welding Rod
Model: E7018 welding rod
Material: Carbon steel welding rod
Length: 300mm-500mm
Diameter: 1.6mm, 2.0mm, 2.5mm, 3.2mm, 4.0mm, 5.0mm
Standard: AWS A.5.1 E7018
Certification: ISO CE
Port: Shanghai Ningbo Yiwu
Delivery Details: Within 8 to 20 days after confirmation
Our Service: Accept OEM
Carbon Steel Welding Electrode AWS E7018
PRODUCT INFORMATION
AWS E7018 Welding Rod is a high-quality carbon steel electrode with iron powder and low hydrogen potassium type. The electrode has excellent welding process performance, good arc stiffness, and is not easy to produce magnetic partial blow. The weld is fine and beautiful, with less spatter and easy slag removal.
APPLICATION
Welding of carbon steel and low alloy steel.Generally, this high-quality welding rod is used for welding marine steel (A, B, d or E, A36, E36) and important structures of low-alloy steel of the same grade strength, such as boilers, pressure vessels and offshore drilling platforms.
DETAILS
| Chemical composition of deposited metal(%) | C | Mn | Si | S | P | Cr | Ni | Mo | V |
| ≤0.12 | ≤1.6 | ≤0.75 | ≤0.035 | ≤0.04 | --- | --- | --- | --- |
Reference current:(AC/DC):
| Diameter(mm) | 2.5 | 3.2 | 4.0 | 5.0 |
| Current(A) | 60-90 | 80-130 | 150-190 | 180-240 |
Composition and performance characteristics
1. Coating composition
Main ingredients: calcium carbonate (CaCO₃), calcium fluoride (CaF₂), iron powder, ferromanganese (Fe-Mn), cellulose, etc.
Function:
CaCO₃ and CaF₂: reduce the hydrogen content in the weld (diffusible hydrogen ≤ 8 mL/100g) and prevent cold cracks.
Iron powder: improve the deposition efficiency, up to 130%~150%.
Arc stabilizer: ensure stable burning of the arc under AC power supply.
2.Mechanical properties
| Item | Yield strength | Tensile Strength | Elongation |
| Rm/MPa | Rel/Rp0.2 MPa | A/% | |
| Standard | ≥400 MPa(58 ksi) | ≥485 MPa(70 ksi) | ≥22% |
| Samples | 430~480 MPa | 510~560 MPa | 24%~26% |
Product Packaging Process
PACKAGING & DEILVERY
Packaging Details:5kgs/inner box, 4 boxes/carton=20kgs, 1 ton/pallet
Port:Shanghai/Ningbo/Yiwu
Lead Time : Within 30 Days After Confirmation
