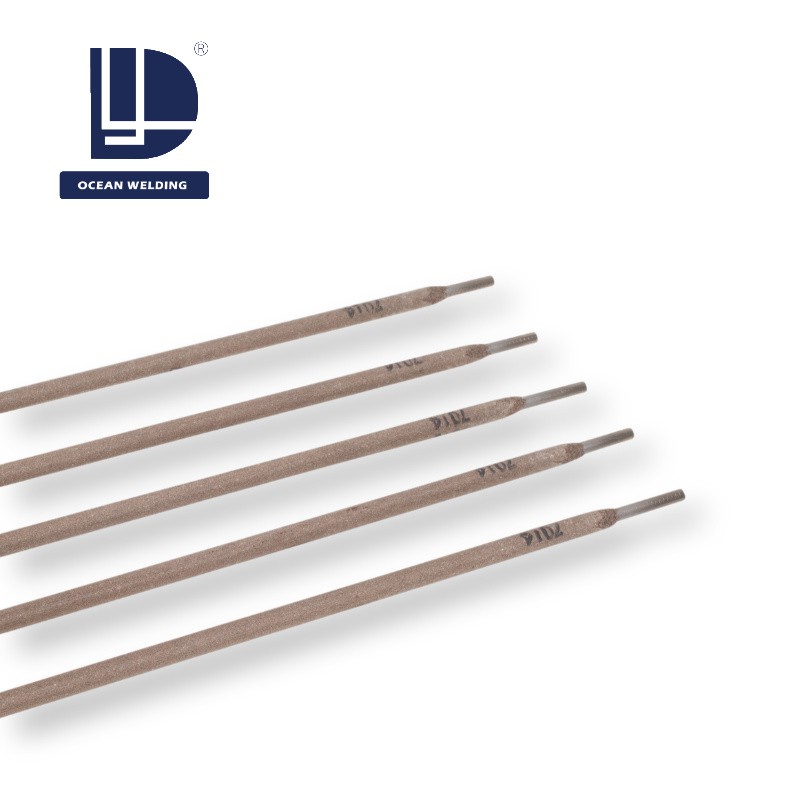

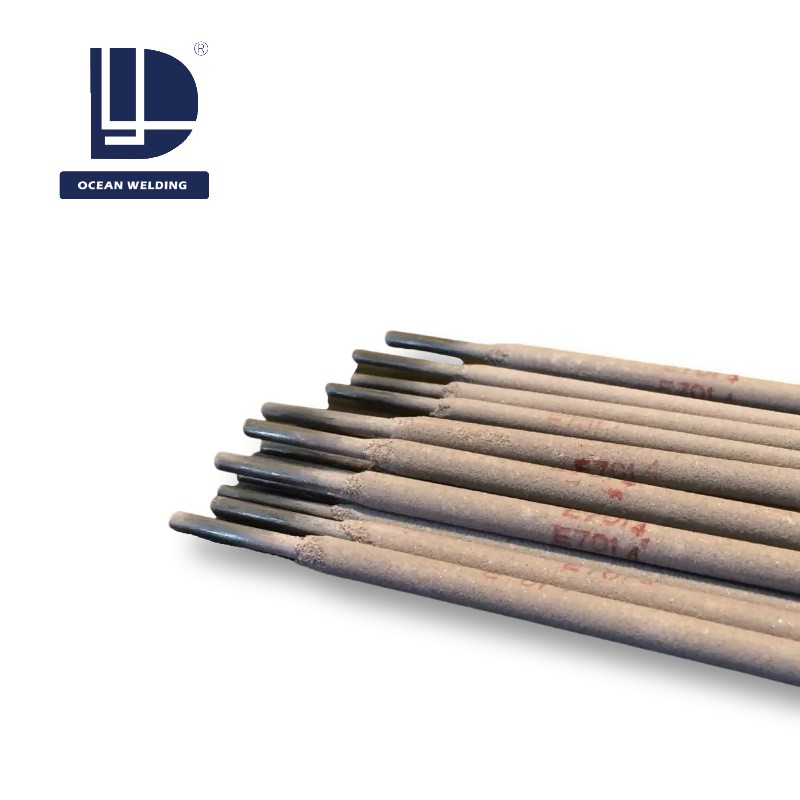

E7014 Welding Rod

In the field of manual metal arc welding (SMAW), the 7014 electrode, with its exceptional versatility and ease of use, has become a popular all-rounder for welders from beginners to professionals. Thanks to its unique composition and performance advantages, this electrode holds a key position in applications such as structural manufacturing, automotive repair, and outdoor work. This article will comprehensively analyze the core characteristics, usage tips, and applicable scenarios of the 7014 electrode to help you easily master its essential applications.

Why is it called E7014?
The model number "E7014" for the 7014 welding rod is not a random combination; it's an industry code that embodies key performance information:
E: Indicates that this electrode is suitable for manual metal arc welding (SMAW) processes;
70: Indicates that the weld metal has a minimum tensile strength of 70,000 psi (approximately 482.6 MPa), a yield strength of at least 58,000 psi, and an elongation of 17%, ensuring reliable weld strength;
1: Indicates that it can theoretically be used for welding in all positions (horizontal, horizontal, vertical, and overhead), but in practice, vertical and overhead welding require higher skill;
4: Identifies the coating type as "Rutile" and compatibility with three current types: direct current positive (DCEP), direct current negative (DCEN), and alternating current (AC), greatly enhancing equipment compatibility.

The chemical composition of the 7014 welding rod is strictly controlled to ensure stable welding performance: carbon content ≤ 0.15%, manganese ≤ 1.25%, silicon ≤ 0.9%, and phosphorus and sulfur ≤ 0.035%. Furthermore, the content of alloying elements such as nickel, chromium, molybdenum, and vanadium is extremely low, making it ideal for welding low-carbon and mild steels.

7014 welding rods of different diameters require specific welding parameters, which are crucial for ensuring weld quality:

• 3/32-inch (approximately 2.4mm): Current 70-90A, Voltage 26-29V;
• 1/8-inch (approximately 3.2mm): Current 120-145A, Voltage 26-27V;
• 5/32-inch (approximately 4mm): Current 140-210A, Voltage 26-28V;
• 3/16-inch (approximately 4.8mm): Current 180-280A, Voltage 26-28V.

These parameters provide a basic reference for welding and need to be flexibly adjusted according to the thickness of the base material, welding position, etc. in actual operation.

The widespread use of 7014 welding rods stems from a series of outstanding features:

• Ultimate ease of use: The iron powder contained in the flux coating not only improves deposition efficiency but also provides a more stable arc, making arc starting and restrike effortless, making even novice welders quickly familiar with the process. The post-weld slag has weak adhesion and often falls off naturally, significantly reducing slag removal.
• Balanced performance: The weld seam exhibits a smooth, finely rippled appearance for aesthetically pleasing form, while also boasting a tensile strength of 70,000 psi, meeting the strength requirements of most structural components. Its medium penetration prevents burn-through in thin plates while maintaining strong bonding in thicker ones, making it suitable for processing base metals with less precise assembly accuracy.
• Environmentally adaptable: Unlike low-hydrogen welding rods, 7014 electrodes are moisture-resistant and require no forced drying, making them particularly suitable for outdoor work in humid environments. Sealing the electrode tightly or using it in a freshly opened container will improve weld quality and slag removal.
• Wide compatibility: It can be used for single-pass or multi-pass welding, and is suitable for materials such as low-carbon steel and mild steel. It performs well in scenarios such as structural steel construction, shipbuilding, bridge welding, and automobile body repair. It is also popular among farmers (repairing agricultural machinery) and DIY enthusiasts (making metal crafts).

Current setting is a key factor in determining welding quality. The following principles should be followed:

• Diameter Matching: The electrode diameter must match the base metal thickness (e.g., a 3/32-inch electrode for 3/32-3/16-inch base metal, and a 1/8-inch electrode for 1/8-1/4-inch base metal). The larger the diameter, the higher the current required.
• Position Adjustment: Standard current can be used for flat and horizontal welding. For vertical and overhead welding, reduce the current by 5-10% to prevent weld pool runoff.
• Temperature Effects: For cold base metal, increase the current appropriately to stabilize the arc. For preheated base metal, use the lower current range.

If the current is too low, the arc will be dim, weld formation will be poor, and deposition speed will be slow. If the current is too high, spatter will increase, weld pool control will be lost, and welds will be too wide. Trial welds are necessary to adjust the current to the optimal setting.

Regarding welding techniques, it's recommended to use a drag welding angle (slightly tilting the electrode backward) to help push the slag toward the back of the weld pool. A triangular swinging technique can be used to control the weld pool during vertical welding. For overhead welding, maintain a fast welding speed and use a medium to low current to prevent droplets. Compared to the 7018 electrode, the 7014 electrode offers better arc starting performance on thin sheet metal, making it suitable for welding delicate components such as automotive fenders.

The 7014 welding rod boasts ease of use, adaptability, and versatility, balancing performance and ease of use. It meets the strength requirements of professional manufacturers while lowering the barrier to entry for beginners. Whether you're a farmer repairing a piece outdoors, a technician working in a workshop, or a DIY metal art enthusiast, the 7014 welding rod can efficiently complete welding tasks. Master its features and techniques, and this all-rounder will become your go-to welding tool.
