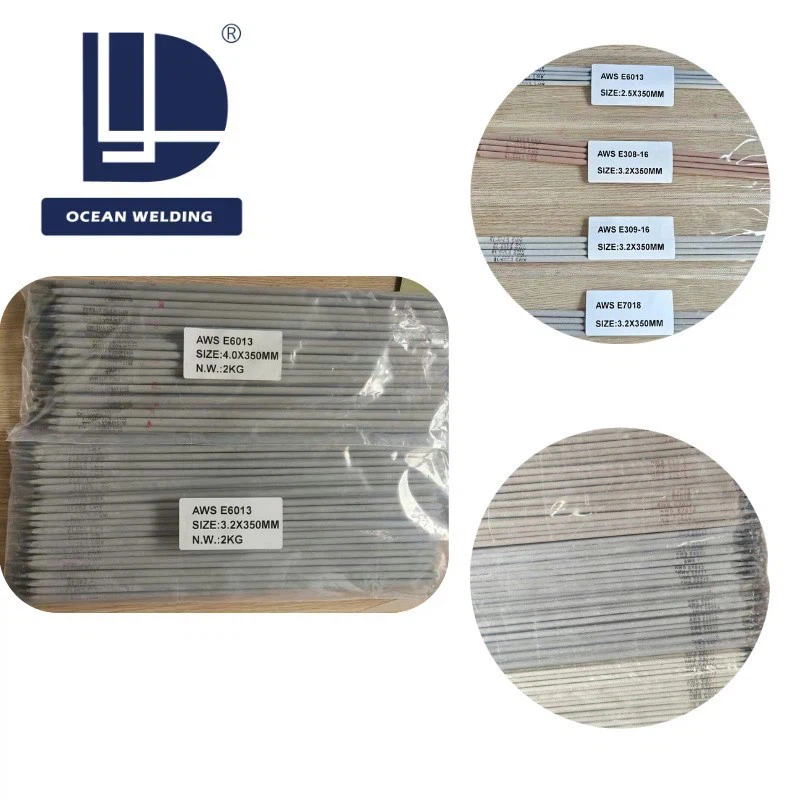

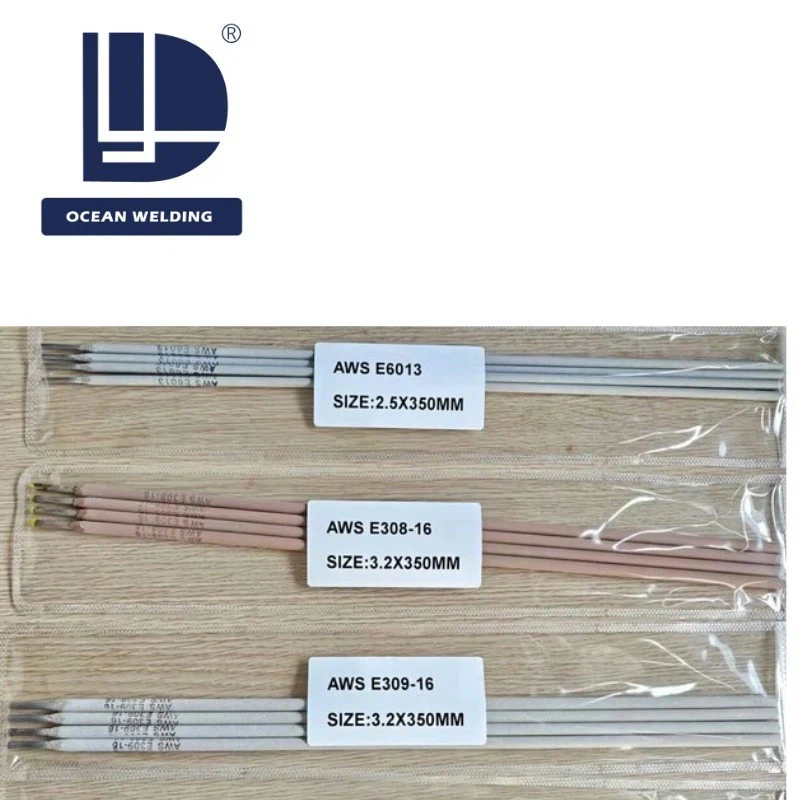

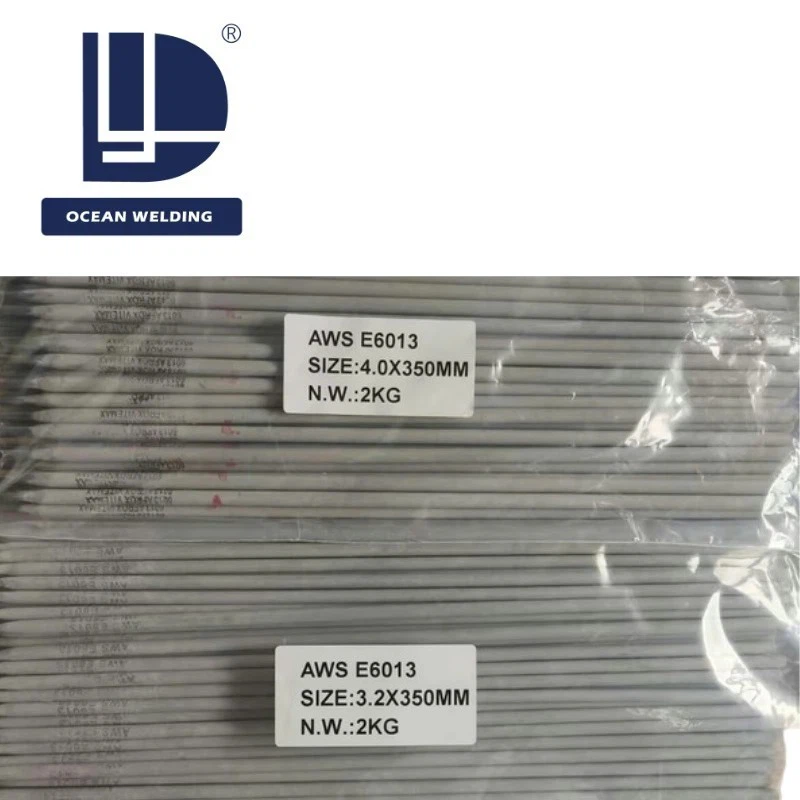

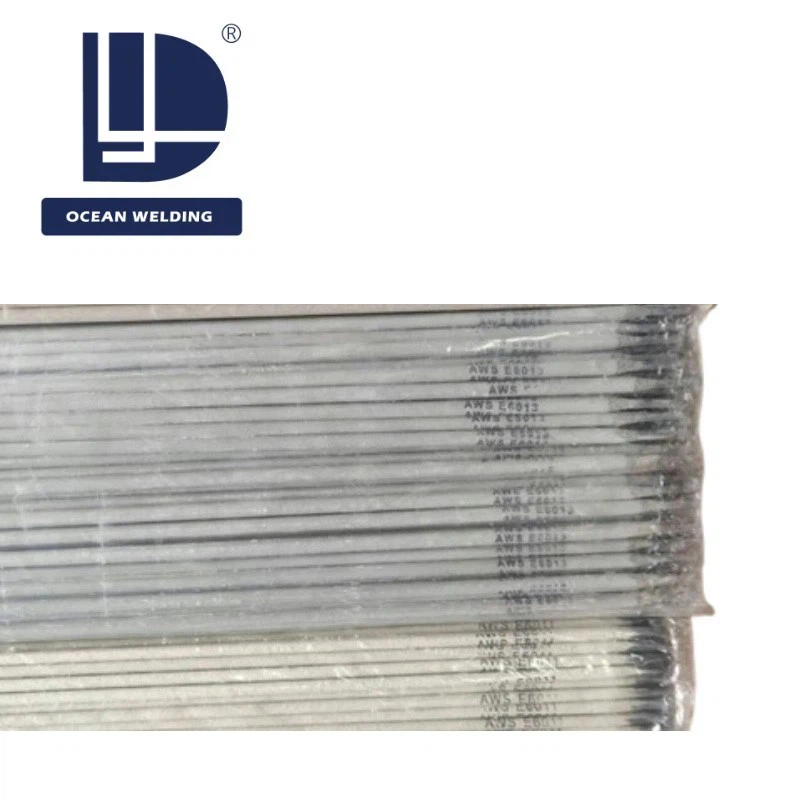

E6013 Welding Rods





E6013 is a titanium oxide type (rutile type) carbon steel welding electrode conforming to AWS A5.1 standard, also known as J421 (GB/T 5117 E4313), and is one of the most commonly used general-purpose shielded metal arc welding (SMAW) electrodes.



• E: Represents Electrode
• 60: Indicates a minimum tensile strength of the weld metal of 60,000 psi (approximately 414 MPa)
• 1: Indicates suitability for all-position welding (flat, horizontal, vertical, and overhead)
• 3: Indicates a titanium oxide type (rutile type) coating, suitable for both AC and DC welding.







Feature	Description
Electrode coating type	Titanium oxide type (rutile type), partially containing small amounts of calcium compounds
Current type	AC/DC dual-purpose, highly adaptable
Welding position	All-position welding, especially suitable for vertical-down welding of thin plates
Arc characteristics	Stable arc, low spatter, easy re-ignition
Weld bead formation	Smooth and aesthetically pleasing weld surface, easy slag removal
Penetration characteristics	Medium to shallow penetration depth, suitable for thin plates and joints with uneven assembly gaps





The E6013 is composed of high-quality mild steel with a specialized coating that ensures a stable arc and low spatter.

Property	Value
Tensile Strength	≥ 60,000 psi (420 MPa)
Yield Strength	≥ 48,000 psi (330 MPa)
Elongation	≥ 17%
Polarity	AC, DCEN (Straight), DCEP (Reverse)



Common E6013 welding rod sizes include:

•3/32" (2.4mm): Ideal for thin materials and precision work.

•1/8" (3.2mm): The most popular size for general fabrication.

•5/32" (4.0mm): Used for thicker plates and higher deposition rates.





Getting the E6013 welding rod amperage right is the secret to a clean weld. Below is a general amperage chart for the most common diameters.

Rod Diameter	Recommended Amperage (Amps)
3/32" (2.4mm)	40 - 90 A
1/8" (3.2mm)	80 - 130 A
5/32" (4.0mm)	105 - 180 A

Pro Tip: For vertical-down welding, use the higher end of the amperage range to maintain a stable arc and prevent slag entrapment.





What can you weld with 6013 rods? Their versatility makes them suitable for a wide range of tasks:

• General Fabrication: Gates, fences, and metal furniture.
• Sheet Metal Welding: Excellent for thin materials where burn-through is a concern.
• Repair Work: Fixing farm equipment or automotive parts.
• DIY Projects: The "easy-to-use" nature makes it perfect for beginners.
