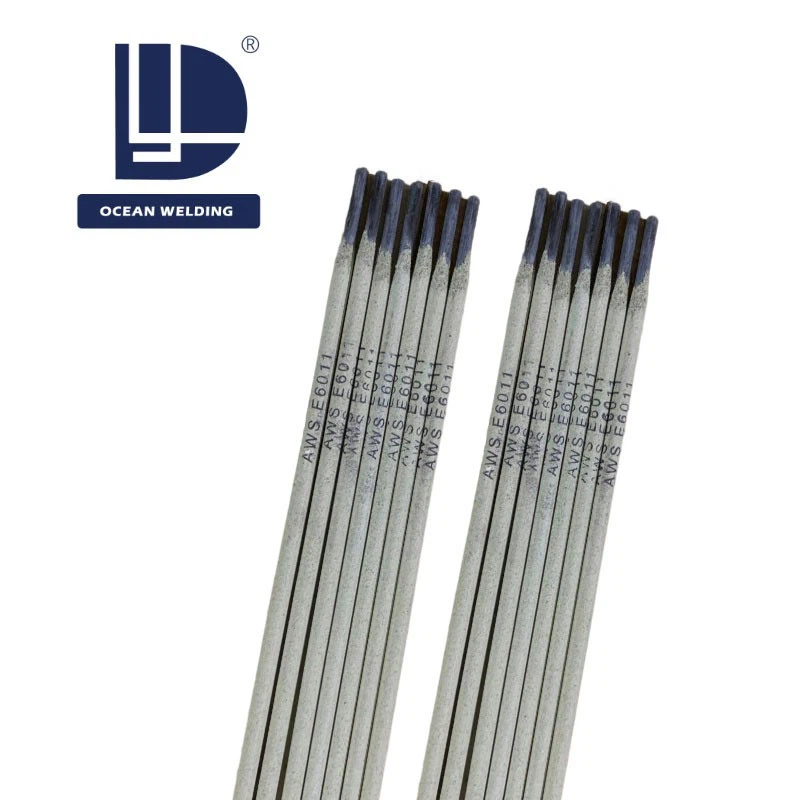

E6011 Electrode SMAW

E6011 is a commonly used manual arc welding (SMAW) electrode, belonging to the category of carbon steel electrodes with a cellulose potassium type coating. The following are its main characteristics, applications, and operating points.

• Standard: Complies with AWS A5.1 / ASME SFA-5.1 E6011 standards.
• Tensile strength: ≥ 60000psi (approximately 410MPa)
• Typical diameters: 3/32″, 1/8″, 5/32″, etc.; lengths are typically 12″–14″.
• All-position soldering: Suitable for horizontal, vertical, and overhead soldering.
• Power supply type: Can be used with either AC or DC positive polarity (DCEP). Not suitable for DC reverse polarity (DCEN).

• Deep penetration and rapid solidification: Strong arc force penetrates surface contaminants such as rust, oil, and paint, suitable for poorly assembled or dirty joints.
• Less spatter and thin, easily removable slag: Stable welding process and easy post-weld cleaning.
• Recommended current range (1/8″ example): Approximately 80–120A.

• Welding of ordinary carbon steel, galvanized steel, and some low-alloy steels.
• On-site repair and fabrication of pipelines, storage tanks, ships, bridges, building structures, etc.
• Particularly suitable for root passes requiring high penetration and outdoor, harsh working environments.

• Welding electrodes are hygroscopic and should be stored in a moisture-proof environment. If they become damp, dry them at 70–80℃ for 0.5–1 hour.
• Control the arc length during welding and avoid excessive oscillation to reduce the risk of porosity.
