alloy steel rod
Model Number: AWS E12015-G
Material: Steel Alloy
Length:300mm-400mm
Operating Current: international standard
Welding Current: international standard
Operating Temperature: international standard
Diameter:2.5mm/3.2mm/4.0mm
Application: For Welding of Low Alloy Steels Structure of Same Grade.
Product Overview
AWS E12015-G low alloy steel electrode is a high-performance low hydrogen iron powder electrode designed for welding low alloy steel pressure vessels and other high strength structures with a tensile strength of 830MPa. It adopts advanced formula and strict production process to ensure that the welded joint has excellent mechanical properties and crack resistance, and is suitable for welding operations under various harsh working conditions.
Core advantages
- High strength matching: Meets the welding requirements of 830MPa low alloy steel, and the weld metal strength is perfectly matched with the base material
- Excellent low temperature toughness: Maintains good impact toughness at -40℃, suitable for application in cold areas
- Low hydrogen characteristics: Diffusible hydrogen content ≤5ml/100g, effectively preventing cold cracks
- Arc stability: The arc is stable during welding, with little spatter, beautiful shape, and easy operation
- All-position welding: Can be performed in all positions such as horizontal, vertical, horizontal, and vertical, with strong adaptability
Technical parameters
- Basic parameters
| Item | Specification |
|---|---|
| Model | AWS E12015-G |
| Brand | Ocean Welding |
| Origin | Zhejiang, China |
| Diameter | 2.5mm / 3.2mm / 4.0mm |
| Length | 300mm - 400mm |
| Applications | Welding of medium carbon steel and low alloy steel structures with corresponding grade strength. |
| Packaging | 5kg/box, 20kg/box, 1 ton/pallet |
| Delivery Detail |
within 25 days after receiving your order |
- Chemical composition of deposited metal (%)
| C | Mn | Si | S | P | Cr | Ni | Mo | V |
| ≤0.15 | 1.65-2.0 | ≤0.6 | ≤0.035 | ≤0.035 | - | - | - | - |
- Mechanical properties
| Performance | Number |
|---|---|
| Tensile strength | ≥830MPa |
| Yield strength | ≥690MPa |
| Elongation | ≥15% |
| Impact energy (-40℃) | ≥47J |
Scope of application
- Applicable parent materials:
Main application areas:
High-pressure vessel and pipeline welding
Large-scale engineering machinery structure

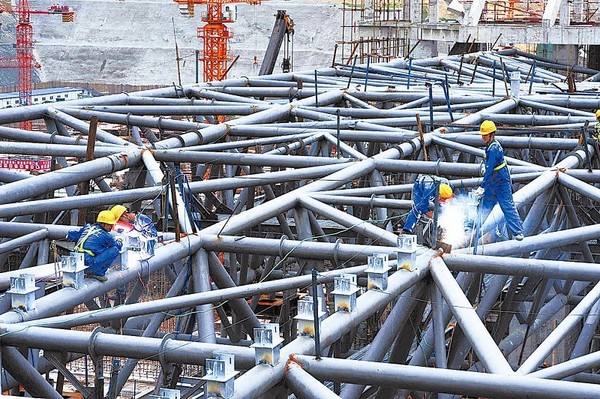

Bridge and high-rise building steel structure
Marine engineering equipment
Electric power equipment manufacturing
Applicable parent materials:
Low-alloy structural steel of corresponding strength level
Low-alloy steel for pressure vessels
High-strength steel for high-rise buildings
Instructions for use
1. Before welding, the electrode must be baked at 350-400℃ for 1 hour and placed in an 80-100℃ insulation cylinder for use
2. Remove impurities such as oil, rust, and moisture within 20mm of the weld groove and both sides
3. Use direct current reverse connection (DCEP), and the welding current should be selected according to the electrode diameter, weld thickness and joint form
4. Short arc operation should be maintained during welding, and the interlayer temperature should be controlled at 150-250℃
5. After welding, stress relief treatment should be performed at 250-350℃×1-2 hours
FAQ
Q: What is the difference between AWS E12015-G and other types of welding rods?
A: AWS E12015-G is a high-strength low-alloy steel welding rod with a tensile strength of 830MPa, which is higher than the ordinary E7018 welding rod (490MPa), and is suitable for welding occasions with higher strength requirements.
Q: Is this welding rod suitable for welding in low-temperature environments?
A: Yes, this welding rod has excellent low-temperature toughness, and the impact energy can still be maintained at more than 47J at -40℃, which is suitable for use in cold areas or low-temperature conditions.
Q: What should I do if pores appear after welding?
A: Porosity is usually caused by improper cleaning of the weldment surface or improper baking of the welding rod. Make sure to thoroughly clean the weldment surface before welding, and bake and keep the welding rod at the specified temperature.
Why choose our AWS E12015-G welding rod?
• Strict quality control: From raw materials to finished products, each process is strictly tested to ensure stable product quality
• Rich production experience: More than 10 years of professional welding rod production experience, mature and reliable technology
• Perfect after-sales service: Provide professional welding technical support and fast-response customer service
• International certification: The product complies with AWS A5.5 standards and has passed ISO9001 quality management system certification
• Competitive price: Large-scale production reduces costs and provides customers with cost-effective products
