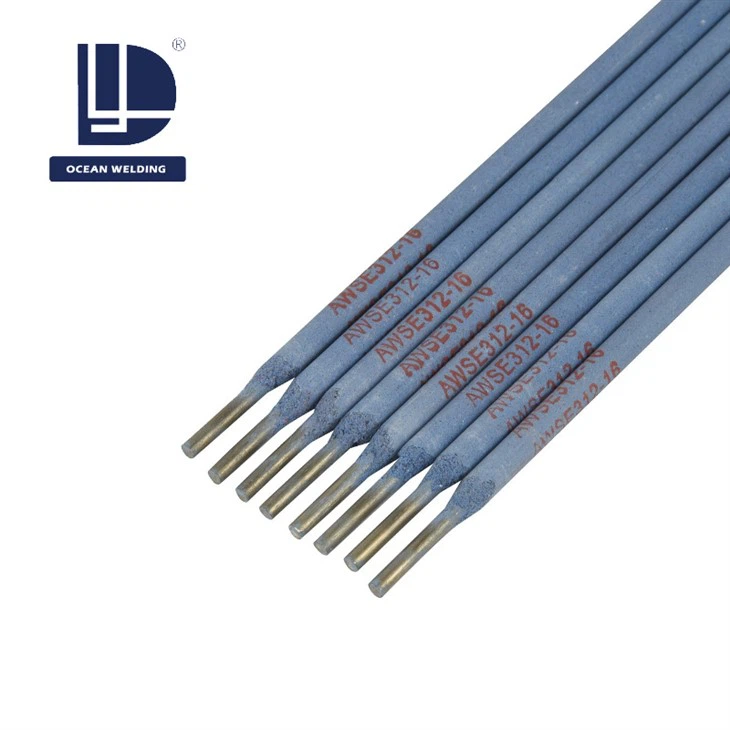

Stainless Steel Welding Electrode AWS E312-16 With High Quality
Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: Ocean Welding
Model Number: E312-16
Material: Stainless Steel
Length: 300mm-500mm
Operating Current: 80-120
Welding Current: 75-105
Operating Temperature: International Standard
Diameter: 2.0mm,2.5mm,3.2mm,4.0mm
Application: High strength ash iron and ball mill iron welding
color: grey-white light blue
Packaging & Delivery
| Packaging Details: | 5kg/ plastic bag+ inner box 4 inner boxes(20kg)/carton 1 ton/pallet |
| Delivery Detail: | within 25 days after confirmation |
Specifications
E312-16 belongs to stainless steel electrode
Standard: AWS A5.4
Certificates: CE ISO SGS
OEM is acceptable Stainless Steel Electrode E312-16
Product Description
| Dual-phase Stainless Steel Electrode AWS E312-16 GB E312-16 | |||||||||
| Introduction: A1002 is a kind of dual-phase steel electrode with lime-titania type coating. Due to the 40% ferrite in the deposited metal, it has excellent crack-resistance. It has excellent welding performance. | |||||||||
| Uses: Used for welding high-carbon steel, tool steel, high temperature steel, armor steel, dissimilar steel, etc. | |||||||||
| Chemical Composition of Deposited Metal (%) | |||||||||
| Chemical Composition | C | Mn | Si | S | P | Cr | Mo | Ni | Cu |
| Guarantee Value |
≤ 0.15 |
0.5-2.5 |
≤ 0.9 |
≤0.03 |
≤0.04 |
28-32 |
≤ 0.75 |
8.0-10.5 |
≤0.75 |
| Mechanical Properties of Deposited Metal | ||
| Test Item | Rm(MPa) | A(%) |
| Guarantee Value | ≥660 | ≥22 |
| Reference Current (AC, DC+) | ||||
| Electrode Diameter(mm) | φ2.5 | φ3.2 | φ4.0 | φ5.0 |
| Welding Current (A) | 50~80 | 80~110 | 110~160 | 160~220 |
| Instructions: 1.The electrodes should be baked under about 250°C for an hour before welding. 2.Direct current had better be used and the current should not be too strong. |
|
Applications:
For welding high carbon steel,dissimilar steel.Cr29Ni9 cast steel,duplex stainless steel as well as problem steels.
Feature:
1.Brand:Ocean welding
2.Certificate: ISO9001-2008, CE,SGS
3.OEM: Acceptable
4.Package: 5kgs/pvc box; 4 pieces of inner box(20kg)/carton; 1 ton/pallet
5.packaging can be changed according to your needs.
6.Sample: free
Advantages:
1.Little Spatter
2. Excellent welding process
3. Very good for machinable
Packaging & Shipping
Packaging:
1. 5kg/pvc box(shrink bag+pvc box)4 pvc boxes(20kgs)/carton50 carton(1 ton)/pallet
2. As clients' requirement
Shipping:
Time: Normally ready goods within 8 to 25 days.
Term: CIF CFR FOB EXW
