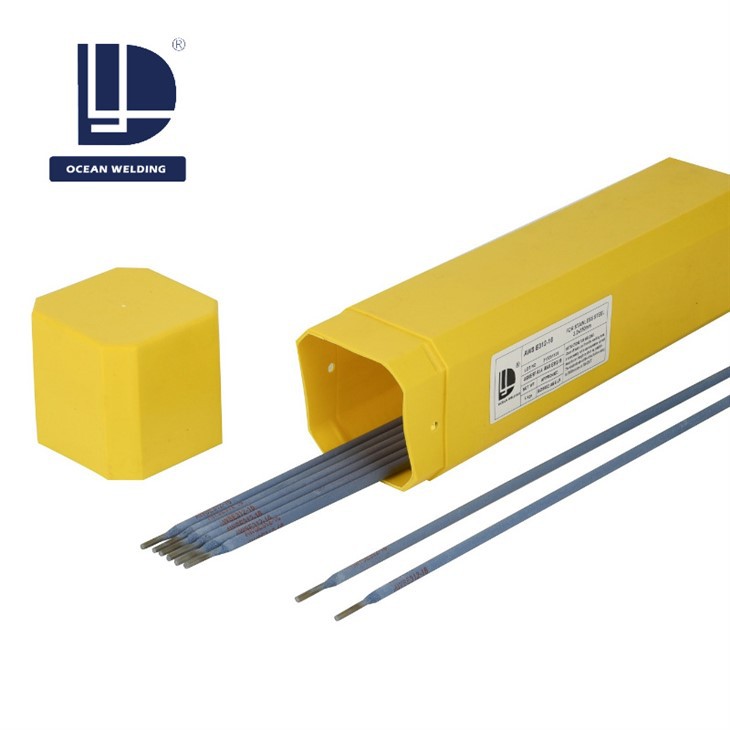

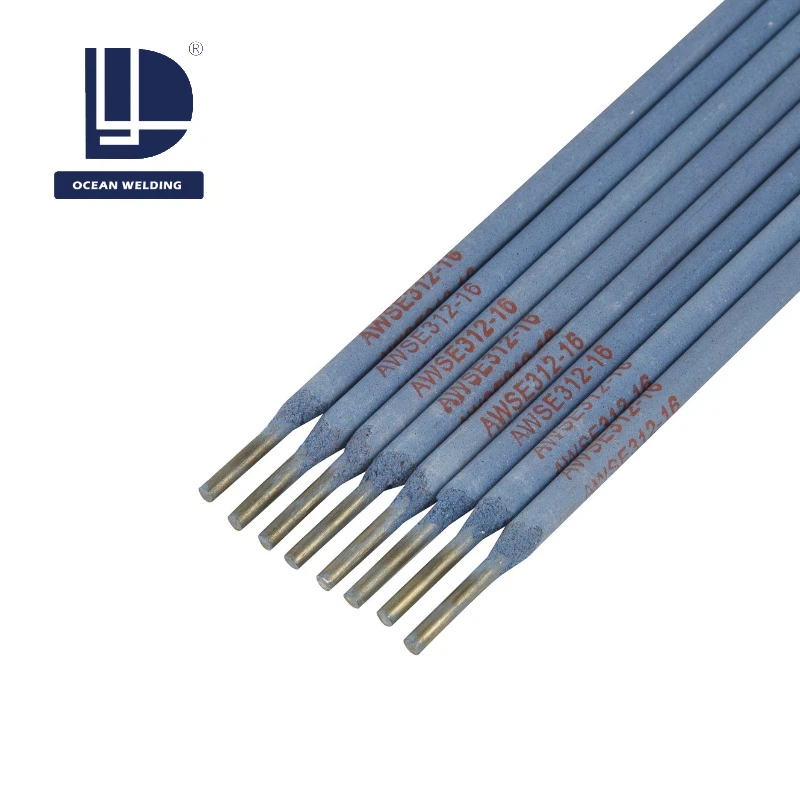

Stainless Steel Weld Wire E312-16

In the field of industrial welding, the quality of welding electrodes directly affects the strength, safety, and durability of welded structures. The stainless steel welding electrode AWS E312-16 launched by Ocean Welding from Zhejiang, China, has become a preferred solution for high-difficulty welding operations, especially in the welding of high-carbon steel, dissimilar steel, and other complex materials, thanks to its excellent performance parameters, wide range of application scenarios, and strict quality control.

I. Core Product Parameters: Accurately Matching Industrial Needs

As a duplex stainless steel welding electrode, AWS E312-16 complies with international standards in terms of basic specifications and performance indicators, ensuring stable welding processes and reliable post-welding results. The specific parameters are shown in the table below:

II. Performance Advantages: Solving Pain Points of High-Difficulty Welding

The core competitiveness of AWS E312-16 lies in its duplex structure characteristics and optimized welding process design. The specific advantages are reflected in three aspects: composition, mechanical properties, and operating experience.

1. Deposited Metal Composition: Balancing Strength and Crack Resistance

The deposited metal of the electrode contains 28%-32% chromium (Cr) and 8.0%-10.5% nickel (Ni), with the carbon (C) content controlled at ≤0.15%, sulfur (S) at ≤0.03%, and phosphorus (P) at ≤0.04%. This composition ratio not only endows the metal with excellent corrosion resistance but also significantly improves crack resistance through the duplex structure of 40% ferrite, effectively avoiding cracks caused by material differences or temperature changes during welding.

2. Mechanical Properties: Meeting High-Strength Operation Requirements

According to test data, the tensile strength (Rm) of the deposited metal of AWS E312-16 is ≥660MPa, and the elongation (A) is ≥22%, which is far higher than the standard of ordinary stainless steel welding electrodes. This means that the welded joints can withstand greater loads, making them suitable for scenarios with strict requirements on structural strength, such as heavy machinery and high-pressure equipment.

3. Operating Experience: Low Spatter and Easy Machinability

Low Spatter: Minimal spatter is generated during the welding process, reducing post-welding cleaning work and improving construction efficiency.

Stable Process: The arc burns stably, and the weld formation is neat, allowing even novice operators to get started quickly.

Easy Machinability: The post-welding metal has good cutting performance and can be subjected to subsequent processing operations such as grinding and drilling as needed without additional treatment of the weld surface.

III. Application Scenarios: Covering High-Difficulty Welding in Multiple Fields

With its excellent compatibility and crack resistance, AWS E312-16 has a wide range of application scenarios, especially for "difficult-to-weld materials" and complex working conditions:

High-Carbon Steel and Tool Steel: It solves the problem of easy brittleness and cracking in high-carbon material welding, and is suitable for the repair and manufacturing of components such as cutting tools and molds.

Dissimilar Steel Welding: It can connect stainless steel with carbon steel, low-alloy steel, and other different materials, and is commonly used in the dissimilar material butt joint of chemical pipelines and pressure vessels.

Special Steel Grades: Including Cr29Ni9 cast steel, duplex stainless steel, and "problematic steel" (such as special materials with uneven composition and easy oxidation).

High-Temperature and Wear-Resistant Scenarios: Such as high-temperature furnaces and ball mill liners. It extends the service life of equipment by virtue of its high-temperature resistance and wear resistance.

IV. Welding Operation and Precautions

To give full play to the performance of AWS E312-16, the standardized operation process should be followed:

Electrode Pretreatment: Before welding, the electrodes should be baked at 250°C for 1 hour to remove moisture from the electrode coating and avoid pores in the weld.

Current Selection: DC electrode positive (DC+) is preferred, and the current should not be too high. The current should be matched according to the electrode diameter (e.g., 80-110A for 3.2mm diameter) to prevent overheating of the weld and coarse grains caused by excessive current.

Welding Positions: It supports various positions such as flat welding (H), horizontal welding (OH), overhead welding (HF), and vertical welding (F, VU), meeting the needs of different construction scenarios.

V. Packaging and Delivery: Flexibly Adapting to Procurement Needs

Ocean Welding provides flexible packaging and delivery solutions according to the procurement scale of different customers:

Regular Packaging: 5kg/PVC box (with shrink film) → 4 boxes/carton (20kg) → 50 cartons/pallet (1 ton), which is convenient for storage and transportation.

Customized Services: OEM branding is supported, and the packaging specifications can be adjusted according to customer needs (such as small-batch trial packs and customized export packaging).

Delivery Cycle: Goods are shipped within 8-25 days after order confirmation, and the delivery time can be shortened to within 1 week when there is sufficient stock.

Transportation Terms: A variety of trade terms such as CIF, CFR, FOB, and EXW are provided to adapt to the procurement habits of global customers, and free samples can be provided for testing.

Whether it is heavy industrial manufacturing, equipment maintenance, or special material welding needs, the AWS E312-16 stainless steel welding electrode has become a reliable partner in the industrial field with its core advantages of "high strength, crack resistance, and easy operation". Relying on strict quality control and a flexible service system, Ocean Welding also continuously provides cost-effective welding solutions for global customers.
