E6011 1/8
E6011 1/8
DESCRIPTION:

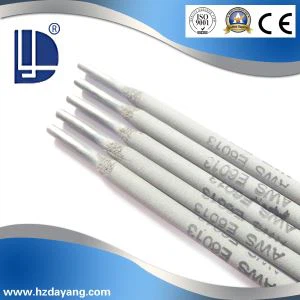

AWS E6011 welding rod is a high cellulose potassium type welding electrode for carbon steel.It is specially suitable for vertical-down welding.Both AC and DC can be applied and it shows a fine appearance with high welding efficiency. Don't swing electrode too much when welding,the length of the arc should be controlled properly and it is not suitable for multi-layer or face welding.
APPLICATION:
E6011 1/8 welding rod Suitable for butt,fillet and lap welding for thin plates structures,such as smoke pipes,wind pipes,oil tanks oftransformer,outside cover ofvehicles,etc.
ATTENTION:
a.Generally,E6011 1/8 welding electrodes do not need bake before welding.
b.If damped,the electrodes should be baked for0.5-1houratthetemperat of 70-80C before welding.
Chemical Composition of Deposited Metal: (%)
|
C |
Mn |
Si |
S |
P |
|
|
Standard |
- |
- |
- |
≤0.035 |
≤0.04 |
|
Typical |
0.09 |
0.65 |
0.20 |
0.023 |
0.025 |
Mechanical Properties of Deposited Metal
|
Tensile Strength |
Yield Point |
Elongation |
Akv Impact(-30℃) |
|
|
σb(Mpa) |
σ0.2(Mpa) |
δ5 (%) |
(J) |
|
|
Standard |
≥420 |
≥330 |
≥22 |
≥27 |
|
Typical |
530 |
415 |
26 |
76 |
Recommended Current( AC,DC)
|
Diameter(mm) |
Φ 2.5 |
Φ3.2 |
Φ 4.0 |
Φ 5.0 |
|
Length(mm) |
300 |
350 |
400 |
400 |
|
Current(A) |
30-50 |
70-100 |
90-140 |
150-200 |
