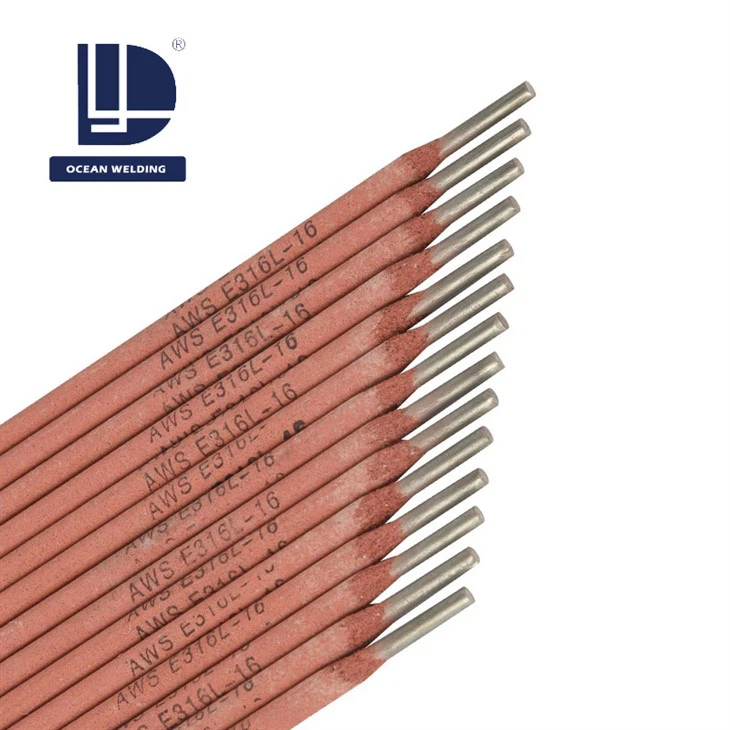

AWS E316L-16 Stainless Steel Welding Electrode
Model: AWS E316L-16
Place of Origin: Mainland China
Certifications: ISO 9001, SGS
Core Advantages: Ultra-low carbon for corrosion resistance, excellent low-temperature toughness, good welding formation, wide application range
1. Quick Product Parameters
| Item | Specification Details |
|---|---|
| Material | High-purity Stainless Steel |
| Diameter | 2.0mm, 2.5mm, 3.2mm, 4.0mm, 5.0mm |
| Length | 250mm-500mm |
| Operating Current | Compliant with international standards |
| Operating Temperature | Compliant with international standards |
| Applicable Electrode | Stainless steel electrode |
| Appearance Color | Grey, Red |
2. Product Performance Features
Excellent Welding Process
Stable wire feed speed, beautiful formation of welding gaps, reducing post-welding finishing work;
Minimal spatter during welding, lowering material waste and cleaning difficulty;
Outstanding low-temperature impact toughness, maintaining joint stability under low-temperature working conditions and preventing brittle fracture.
Superior Corrosion Resistance
Ultra-low carbon design (C ≤ 0.04%), reducing carbide precipitation and effectively preventing intergranular corrosion;
Contains chromium (17-20%), nickel (11-14%), and molybdenum (2.0-3.0%) elements, with better pitting and crevice corrosion resistance than E308L-16, suitable for highly corrosive environments.
Reliable Mechanical Properties
The tensile strength of deposited metal is ≥ 520MPa (actual test: 595MPa), ensuring strong load-bearing capacity;
Elongation is ≥ 30% (actual test: 44%), with excellent ductility, avoiding fracture under stress.
3. Technical Data of Deposited Metal
(1) Chemical Composition (%)
| Element | International Standard Requirement | Actual Test Value |
|---|---|---|
| C (Carbon) | ≤ 0.04 | 0.048 |
| Mn (Manganese) | 0.5-2.5 | 0.86 |
| Si (Silicon) | ≤ 0.90 | 0.66 |
| Cr (Chromium) | 17-20 | 19.88 |
| Ni (Nickel) | 11-14 | 9.7 |
| Cu (Copper) | ≤ 0.75 | 0.23 |
| Mo (Molybdenum) | 2.0-3.0 | 0.14 |
| S (Sulfur) | ≤ 0.03 | 0.012 |
| P (Phosphorus) | ≤ 0.04 | 0.028 |
(2) Mechanical Properties
| Item | International Standard Requirement | Actual Test Value of Sample |
|---|---|---|
| Tensile Strength (MPa) | ≥ 520 | 595 |
| Elongation (%) | ≥ 30 | 44 |
4. Application Scenarios
Welding/Repair of 316L Stainless Steel: Suitable for the manufacturing of 316L alloy pipes, storage tanks, containers and other components, as well as the maintenance of old equipment, ensuring the joint matches the base material in performance;
Overlay Welding on Carbon Steel/Low-Alloy Steel: Forming a Cr-Ni-Mo stainless steel cladding on the base material surface, achieving high corrosion resistance at low cost, applicable to chemical reactors and pump bodies;
Highly Corrosive Environments: Used in chemical, pharmaceutical, food processing and other fields, withstanding corrosion from acids, alkalis and salt solutions;
Low-Temperature (Cryogenic) Working Conditions: Welding of liquefied natural gas storage tanks, low-temperature pipelines and other equipment in extreme environments of -196℃.
5. Packaging & Delivery
(1) Packaging Specifications
Inner Layer: 5kg/plastic box (moisture-proof and anti-damage);
Outer Layer: 20kg/carton (4 pieces of 5kg plastic boxes per carton);
Bulk: 1 ton/pallet (easy for forklift loading/unloading and warehousing).
(2) Delivery Information
Delivery Cycle: Shipment within 20-25 days after receiving the order (subject to order confirmation);
Logistics Terms: Supports CIF (Cost, Insurance and Freight), CNF (Cost and Freight), FOB (Free On Board).
6. Procurement Support
Cooperation Modes: Wholesale and customization are supported, with discounts for bulk procurement;
Quality Assurance: Provides ISO 9001 and SGS certification documents, direct supply from the source factory, and traceable quality;
Contact Us: Official website: www.hzdayang.com. Inquiries about quotations, sample applications and technical support are welcome.
