low temperature welding rod
Brand Name:DAYANG/OCEAN WELDING
Model Number:AWS E8015-C1
Material:Low-Alloy-Steel-Electrode
Length:350mm-500mm
Operating Current:international standard
Welding Current:international standard
Operating Temperature: international standard
Diameter:2.5mm 3.2mm 4.0mm
Application: low alloy steel structures
Products Description

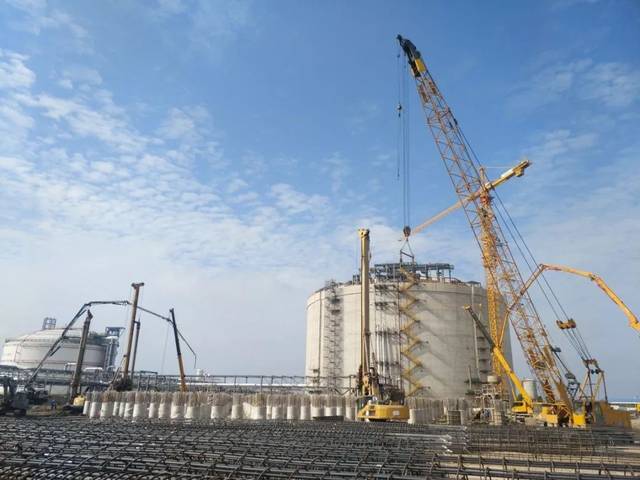

Ocean Welding AWS E8015-C1 low-temperature steel electrode is a low-hydrogen sodium coated electrode designed for extreme environments of -70℃. It adopts 2.0-2.75% nickel alloy system and achieves excellent low-temperature toughness by refining grains and inhibiting brittle phase transformation. It complies with AWS A5.5 and NB/T 47018 standards and is suitable for welding low-temperature steels such as 09MnNiDR, 13MnSi6, and E36. It is widely used in key structures such as LNG storage tanks, polar ships, and cryogenic pressure vessels. The product diameters include 2.5mm, 3.2mm, and 4.0mm, meeting the full-position welding needs of workpieces of different thicknesses.
Packaging & Delivery
|
Packaging Details: |
5kg per color box, 20kg/carton |
|
Delivery Detail: |
20days |
Specifications
Welding of low alloy steel structures for working temperature of which is -60ºC,such as 13MnSi6,09MnNiNb,E36etc.
Features:
1) Welding temperature is lower than 300 degrees
2) Chemical composition of deposited metal: C<=0.12 Mn>=1.25 Si<=0.6 S<=0.035 P<=0.035 Cr - Ni=2.0-2.75 Mo - V -
3) Low-Alloy-Steel-Electrode
Inner packing:
1) 2.5mm x 300mm, 1-5kg/inner box + plastic bag
2) 3.2mm x 350mm, 1-5kg/inner box + plastic bag
3) 4.0mm x 350mm, 1-5kg/inner box + plastic bagAWS E8015-C1(3)
|
Model Number |
AWS E8015-C1(3) |
|||||||
|
Brand Name |
Ocean Welding |
|||||||
|
Size |
2.5mm 3.2mm 4.0mm |
|||||||
|
Applications |
Welding of low alloy steel structures for working temperature of which is -60°C,such as 13MnSi6,09MnNiNb,E36 etc. |
|||||||
|
Chemical composition of deposited metal(%) |
||||||||
|
C≤0.12 |
Mn≥1.25 |
Si≤0.60 |
S≤0.035 |
P≤0.035 |
Cr- |
Ni2.0-2.75 |
Mo- |
V- |
Welding Process Guide
Key parameters (3.2mm welding rod)
| Welding position | Current (A) | Voltage (V) | Line energy (kJ/cm) |
|---|---|---|---|
| Flat welding | 90-120 | 24-28 | 15-20 |
| Vertical welding | 80-100 | 22-26 | ≤18 |
Post-weld treatment: 200-250℃×2 hours dehydrogenation treatment, 600-650℃ stress relief heat treatment is recommended for thick plates
Product Specifications and Packaging
| Diameter (mm) | Packaging Specifications | Applicable Plate Thickness (mm) |
|---|---|---|
| 2.5 | 5kg/color box | 3-8 |
| 3.2 | 5kg/color box | 6-16 |
| 4.0 | 20kg/carton | 12-25 |
Delivery time: 20 days for conventional models, supporting DDP/FOB/CIF trade terms
About Ocean Welding
Founded in 1995, Ocean Welding is a professional welding material manufacturer with 15 automated production lines and an annual production capacity of 8,000 tons. The low-temperature steel welding rod series has passed the certification of 12 classification societies such as ABS, DNV, and LR. The products are exported to more than 30 countries including Europe, America, Russia, and Southeast Asia. It has more than 200 successful cases in the fields of LNG engineering and polar ships.
