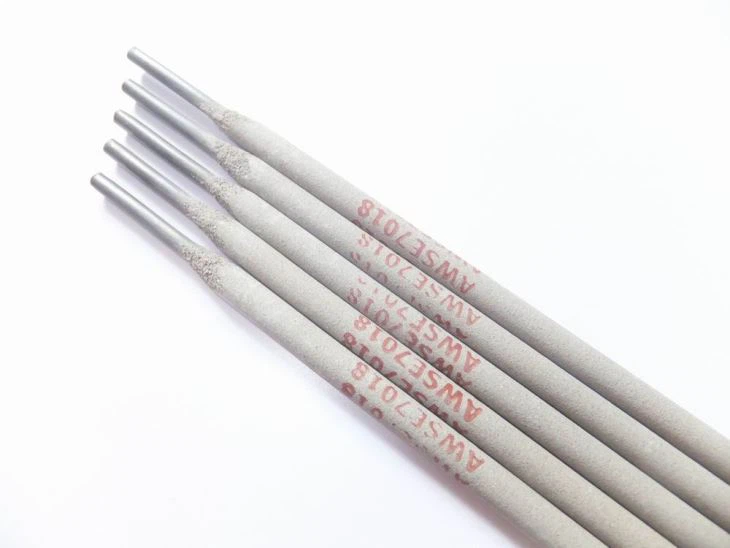

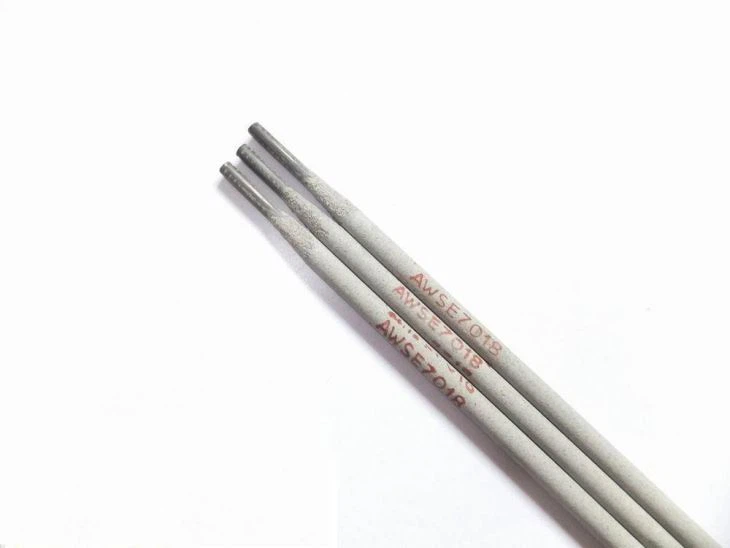

E7018 welding rods
DESCRIPTION:
AWS E7018 Welding rod is a iron powder low hydrogen type carbon steel welding electrode.It can be used for all position welding with excellent performances:small spatters,easy restrike arc,high welding efficiency,fine appearance and slag easy to remove,etc.The seam weld metal shows a satisfactory plasticity,excellent low temperature toughness and high crack resistance.Both AC and DC can be applied.
APPLICATION:
AWS E7018 welding rod Suitable for welding important medium carbon steel and low alloy steel,such as16Mn steel,parts of ships fabricated by A,B,D,E grade steel as well as parts of boilers,pressure vessels and pipes.
ATTENTION:
a. Before welding,the weld metal must be cleared away impurities,such as rust,oil,moisture,etc.
b. Short arc and narrow weld bead are recommended in welding.
Chemical Composition of Deposited Metal: （%）
C | Mn* | Si | S | P | Cr* | Ni* | Mo* | V | |
Standard | - | ≤1.60 | ≤0.75 | ≤0.035 | ≤0.040 | ≤ 0.20 | ≤ 0.30 | ≤ 0.30 | ≤ 0.08 |
Typical | 0.065 | 1.38 | 0.44 | 0.012 | 0.020 | 0.011 | 0.015 | 0.001 | 0.002 |
The Element With*≤1.50%
Mechanical Properties of Deposited Metal
Tensile Strength | Yield Point | Elongation | Akv Impact（-30℃） | |
σb(Mpa) | σ0.2(Mpa) | δ5 (%) | (J) | |
Standard | ≥490 | ≥400 | ≥22 | ≥27 |
Typical | 550 | 460 | 31 | 130 |
Diameter and Recommended Current( AC>70V or DC*>70V)
Diameter(mm) | Φ 2.5 | Φ3.2 | Φ 4.0 | Φ 5.0 |
Length(mm) | 300 | 350 | 400 | 400 |
Current(A) | 70-110 | 100-140 | 140-180 | 190-240 |
WELDING PERFORMANCE

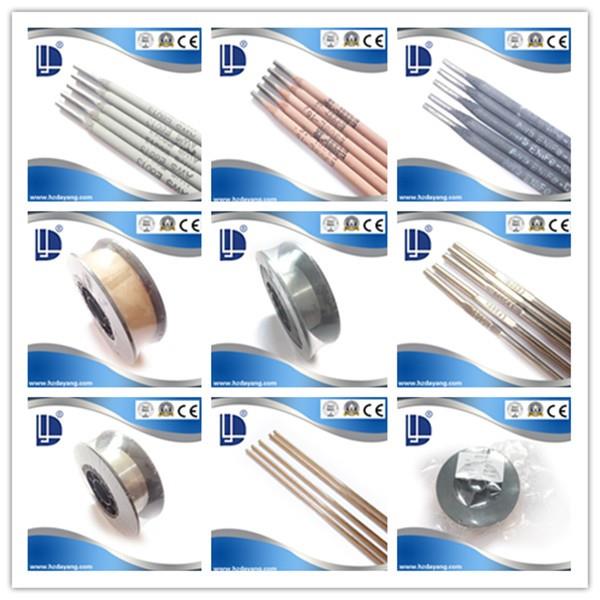

OTHER WELDING PRODUCTS

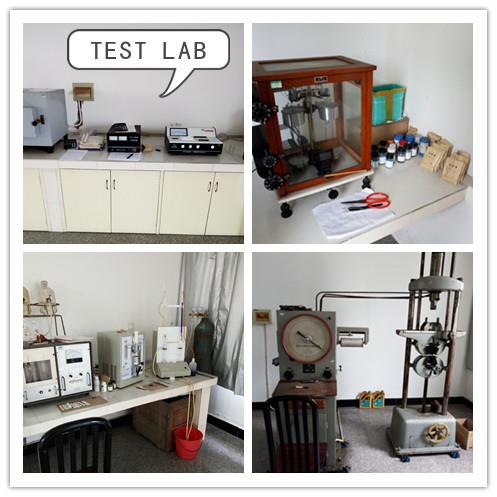

WELDING TEST LAB
