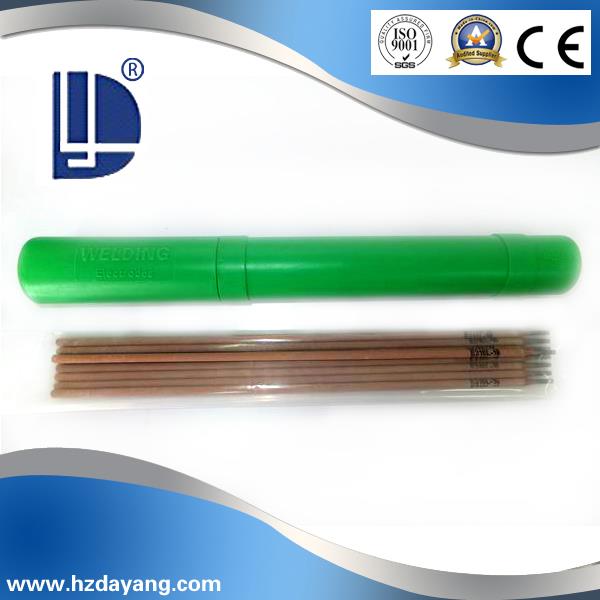

E316L-16 welding rod

• ‌Standard Compliance‌: Strictly follows AWS A5.4 E316L-16 international standard, fully matches the performance of imported mainstream 316L welding electrodes
• ‌Raw Material Control‌: All core alloy raw materials use primary electrolytic chromium, electrolytic nickel and high-purity molybdenum iron, no recycled scrap stainless steel is added, the carbon content of the deposited metal is strictly controlled below 0.04%
• ‌Available Specifications‌:
  • Diameter options: 2.0mm / 2.5mm / 3.2mm / 4.0mm / 5.0mm
  • Length range: 250mm - 500mm, non-standard length customization is supported for orders over 3 tons
• ‌Identification Design‌: The electrode coating is grey, with a unique red tail mark, which can be quickly distinguished from other common stainless steel electrodes on site to avoid misoperation
• ‌Production Traceability‌: Each batch has an independent production number, you can check the full raw material inspection record, production process log and finished product test report through the number

Compared to standard 316L welding electrodes on the market, our E316L-16 welding electrodes benefit from nine generations of formula optimization, exhibiting superior stability under harsh working conditions:

1. Superior corrosion resistance: The ultra-low carbon formula effectively inhibits the precipitation of intergranular carbides; the weld has passed the sulfuric acid-copper sulfate intergranular corrosion test with a 100% pass rate, making it suitable for long-term contact with corrosive media such as dilute sulfuric acid, phosphoric acid, and acetic acid.
2. Excellent welding performance: The specially formulated titanium-calcium type flux coating ensures extremely high arc stability, with a spatter rate of less than 1%, and the resulting slag is thin and easy to remove; even welders with average experience can easily produce smooth, beautiful, silvery-white weld beads without the need for post-weld grinding.
3. Excellent low-temperature performance: The ferrite content in the weld metal is controlled below 0.5%, avoiding the low-temperature embrittlement problem common in ordinary stainless steel welds, and maintaining stable impact toughness even at -196°C.
4. Low crack sensitivity: The optimized alloy element ratio reduces the tendency of weld hot cracking, ensuring good crack resistance even when welding thick plates or under high restraint conditions.
5. Long shelf life: The coating uses a high-strength, moisture-resistant adhesive, which can maintain stable performance for up to three years under dry storage conditions, without peeling or performance degradation.

This electrode is widely used in high-value core components in chemical, marine, food and low-temperature industries, and is a long-term designated supplier for many large domestic and foreign engineering projects:

• ‌Chemical equipment field‌: Welding and repairing of 316L stainless steel reactors, storage tanks, chemical delivery pipelines, centrifugal pumps and valves
• ‌Marine engineering‌: Welding of ship deck components, seawater desalination equipment, offshore platform parts that are exposed to seawater corrosion for a long time
• ‌Food and pharmaceutical industry‌: Welding of food processing machinery, pharmaceutical production equipment, which meets the requirements of no heavy metal precipitation and easy cleaning
• ‌Cryogenic equipment‌: Welding of liquid oxygen, liquid nitrogen, LNG low temperature storage tanks and cryogenic conveying pipelines
• ‌Dissimilar steel welding‌: Overlay welding of carbon steel and low alloy steel surfaces, forming a 316L corrosion-resistant transition layer, which can effectively reduce the material cost of equipment manufacturing

(A)Chemical Composition of Deposited Metal(%)

Packaging &  Shipping
Packaging:
     1. AWS E316-16 Stainless steel welding electrode
     2. Wire Diameter Dia :2.0mm-5.0mm
     3. Packaging detail:5kgs per plastic box, 4pcs of 5kgs box into 20kgs per carton box.
Shipping:
     1.Delivery time:Within 25days after receiving your order.
     2.CIF CNF  FOB

We provide full-process technical support to help you avoid common welding defects:

1. ‌Electrode pre-treatment‌: Bake the electrode at 200-250°C for 1 hour before welding, and store it in a 100-120°C heat preservation barrel after taking it out, take as much as you use each time, to prevent the coating from absorbing moisture and causing pores or delayed cracks
2. ‌Workpiece pre-treatment‌: Completely remove oil, rust, oxide scale and other impurities within 20mm on both sides of the weld groove, use stainless steel wire brush to clean the groove after grinding, avoid carbon steel tools contaminating the weld area
3. ‌Welding operation‌: Use DC reverse connection, adopt small current, short arc, multi-layer multi-pass welding, control the interlayer temperature below 150°C, do not swing the electrode too wide, to avoid overheating of the weld and reducing corrosion resistance
4. ‌Post-weld treatment‌: For parts with high corrosion resistance requirements, it is recommended to carry out post-weld pickling and passivation treatment, to form a dense chromium-rich oxide film on the weld surface
