Product Details

stainless  steel electrode AWSE309MoL-16


stainless  steel electrode AWSE309MoL-16  Chemical Composition of Deposited Metal (%)
Superior quality with low price electrode has  excellent welding properties, good slag removal and minimum spatter.

Product   Name

Stainless   Steel Electrode

Product   No.

MHAE411-WE054

Standard

GB

AWS

JIS

DIN

E309MoL-16

E309MoL-16



Type   of Covering

Extra   low carbon Lime titania

Welding   Position

F,V,        OH,H

Chemical   Composition of Deposited    Metal (%)

Chemical   Composition

C

Mn

Si

S

P

Cr

Ni

Mo

Cu

Guarantee

≤0.04

0.50-2.50

≤0.90

≤0.03

≤0.04

22.0-25.0

12.0-14.0

2.0-3.0

≤0.75

0.04

0.64

0.58

0.009

0.023

23.15

12.41

2.11

0.02

Mechanical   Properties of Deposited    Metal

Test   Item

Tensile   Strengh

Yield   point

Elongation

Akv1(J)

<Rm   (MPa)

ReL   (MPa)

A4 (%)

Guarantee

≥550


≥30


580

36

Reference   Current (AC or DC)

Electrode   Diameter(mm)

2.5

3.2

4.0

5.0

Welding   Current(A)

50-70

80-110

130-160

160-200

Instructions

1.The   Electrodes must be baked under 250°C   for an hour before    Welding.

2.Use   dc reverse connect as far as    possible,for using AC welding ,the   penetration is shallow.

Application

For   welding corresponding extralow    carbon stainless steel structures   and dissimilar steels,

e.g.   ammonia or urea converters.





















stainless  steel electrode AWSE309MoL-16  Package details:
1.   5kgs/pvc box; 4 pvc box(20  kgs)/carton box; 1 ton/pallet
2. As clients’ requirement
stainless  steel electrode AWSE309MoL-16  Delivery:
1.Time:  Normally ready goods within 8 to 25 days.
2.Term: CIF CNF FOB EXW


Company  Information:
1.We are Lin an Dayang Welding Material Co., Ltd., one of leading manufacturing enterprises in China,
specialized in making consumables like welding electrodes, welding wire, for 20 years.
2.With experienced and skilled technicians who engaged in this industry for about 20 years, we have a professional production line for welding electrode  E309MoL-16 now.

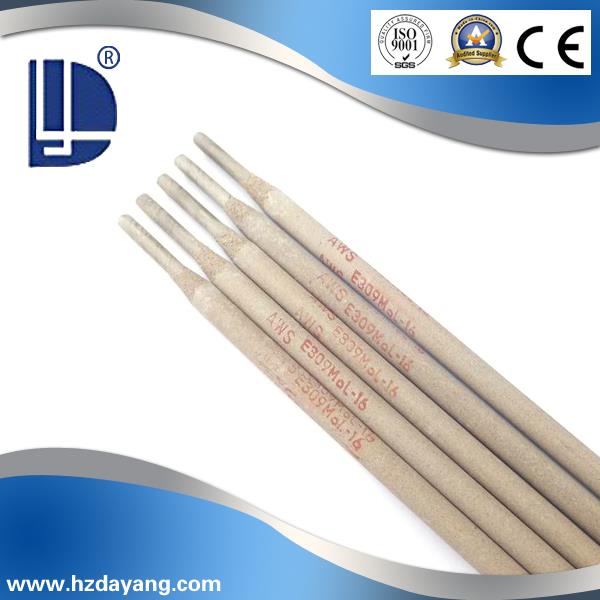

E309MoL-16 3.2副本.jpg
