Quick DetailsPlace of Origin: Zhejiang, China (Mainland)Brand Name: Ocean WeldingModel Number: AWS E308-16,E308L-16Length: 300mm-500mmOperating Current: inter...
Quick Details
Place of Origin: Zhejiang, China (Mainland)
Brand Name: Ocean Welding
Model Number: AWS E309Mo-16
Length: 300mm-500mm
Operating Current: international standard
Welding Current: international standard
Operating Temperature: international standard
Diameter: 2.0mm 2.5mm 3.2mm 4.0mm 5.0mm
Application: WELD CARBON STEEL CONSTRUCTION.
color: Red,Grey
material: Stainless Steel
Delivery time:: within 15days after your confirmation
samples: free supply
OEM: we accept OEM
Packaging & Delivery
Packaging Details: | 5kgs/Box, 20kgs/Carton |
Delivery Detail: | within 15days after your confirmation |
Specifications
stable arc,little spatter,less smoke;
higher deposition efficiency;
excellent welding performance;
easy restrike.

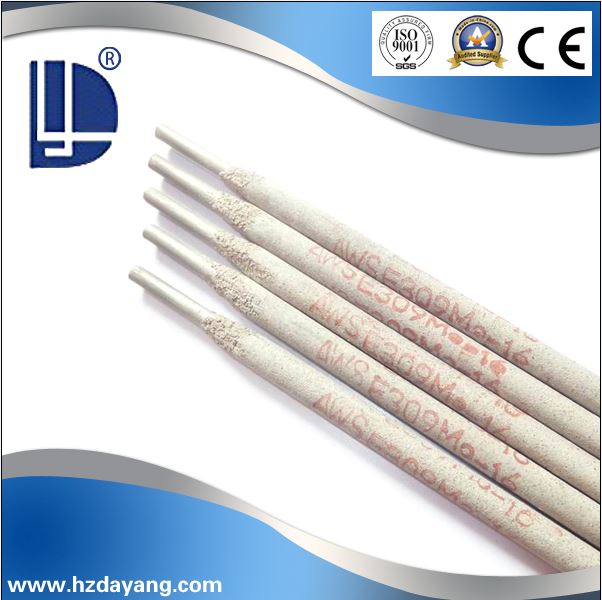

stainless steel welding electrode E309Mo-16
Our welding electrodes are less splashing and smoke, easy weld restarting, beautiful shape and low in dust and toxicity
Product Description
AWS E309-16 is a lime-titanium type electrode for welding general stainless steels with all positions welding. Widely be used for welding of0Cr 18Ni9(e.g.301.302.304.308) and Cr18Ni9Ti stainless steel structures, which working temperature is below 300℃ to 350℃ for 1 hour.
Applications
Suitable for welding steel containing 22 - 26% Cr, 11 - 14 % Ni, 2 - 3% Mo, also for joints between 18 Cr, - 8 Ni,
stainless steel and mild steel, or low alloy steel as well as clad steel.
Welding electrode e308-16 Used for welding equipment of urea, synthetic fiber, etc.
2.Used for Cr stainless steel which does not need heat treatment after welding.
3.Used for Cr stainless steel which does not need heat treatment after welding, composite steel, dissimilar steel, etc
Chemical Composition of Deposited Metal(%)
Mechanical Properties of Deposited Metal(%)
Elements | C | Mn | Si | Cr | Ni | Cu | Mo | S | P |
| Standard | ≤0.12 | 0.5-2.5 | ≤0.90 | 22-25 | 12-14 | ≤0.75 | 2.0-3.0 | ≤0.03 | ≤0.04 |
| Deposited metal | 0.047 | 0.80 | 0.75 | 25.83 | 12.73 | 0.02 | 0.01 | 0.01 | 0.028 |
| ITEM | Tensile Strength(MPa) | Elongation(%) |
| Standard | ≥550 | ≥35 |
| Samples | 575 | 35 |
Characteristics on Usage:
A low carbon stainless steel electrode for welding heat resistant Cr and Cr - Ni alloyed steel. It is a medium
heavy coated rutile type, all position electrode yielding 25 Cr, 12 Ni, 2 Mo stainless steel weld deposit. The ferritic
austenitic weld metal is very crack resistant smooth weld with clean edges. Suitable for welding build up turbine
runners made of ferritic chromium stainless steel specially designed for welding root run in clad steel as well as
mild steel.
Packaging & Shipping
1.AWS E309Mo-16 Stainless steel welding electrode
2.Wire Diameter Dia :2.0mm-5.0mm
3.Packaging detail:5kgs per plastic box, 4pcs of 5kgs box into 20kgs per carton box.
4.Delivery time:Within 25days after receiving your order.
